Product Description

🔧 Product Specifications:

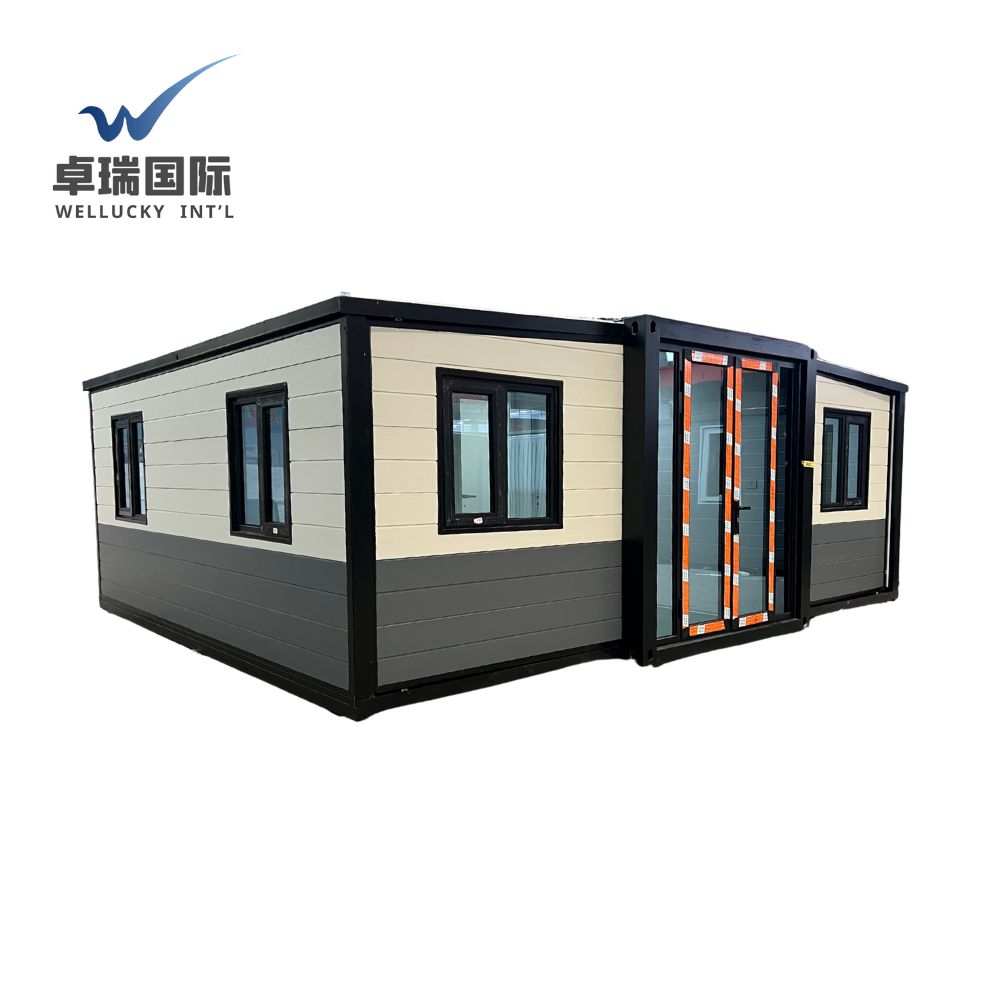

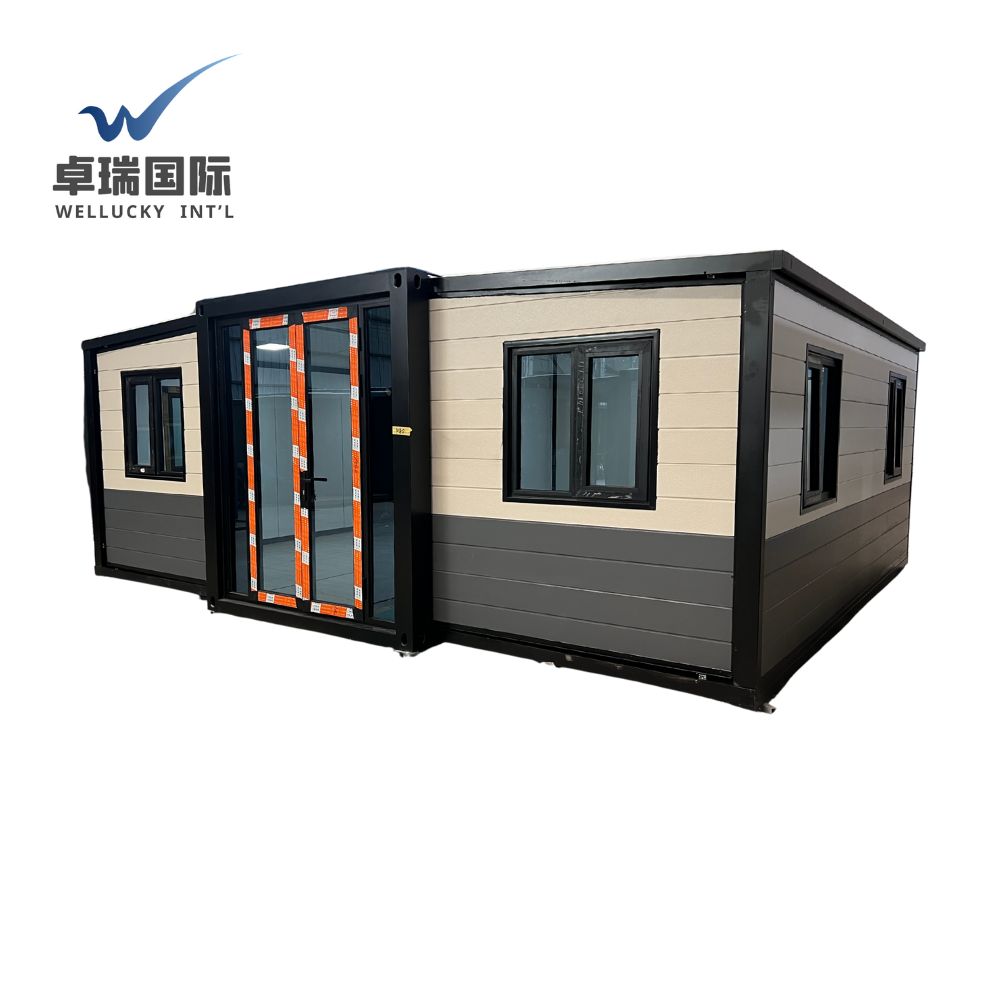

• Expanded Size: 5900mm × 6300mm × 2480mm

• Internal Dimensions: 5460mm × 6140mm × 2240mm

• Folded Size: 5900mm × 2200mm × 2480mm

• Floor Area: 37㎡

• Net Weight: 2.8 tons

• Capacity: 2–4 people

• Power Consumption: 12KW, 220V/50Hz

🛠️ Structure & Material Overview:

• Main Frame (Fully Galvanized):
  80×100×2.5mm square tube + 2.0mm bending components
  Galvanized hanging head (210×150×160mm)
  Anti-rust treated steel column

• Side Frame:
  40×80×1.5mm P-shaped top frame
  60×80×2.0mm bottom frame
  130mm galvanized hinge for folding

• Surface Treatment:
  Electrostatic spray molding + white plastic powder coating

🧱 Roof, Wall, and Floor:

• Roof:
  T50mm EPS color steel plate + 0.4mm corrugated veneer

• Ceiling Panels:
  200-type modular ceiling board

• Walls:
  Side: T65mm EPS color steel
  Partition: T50mm EPS

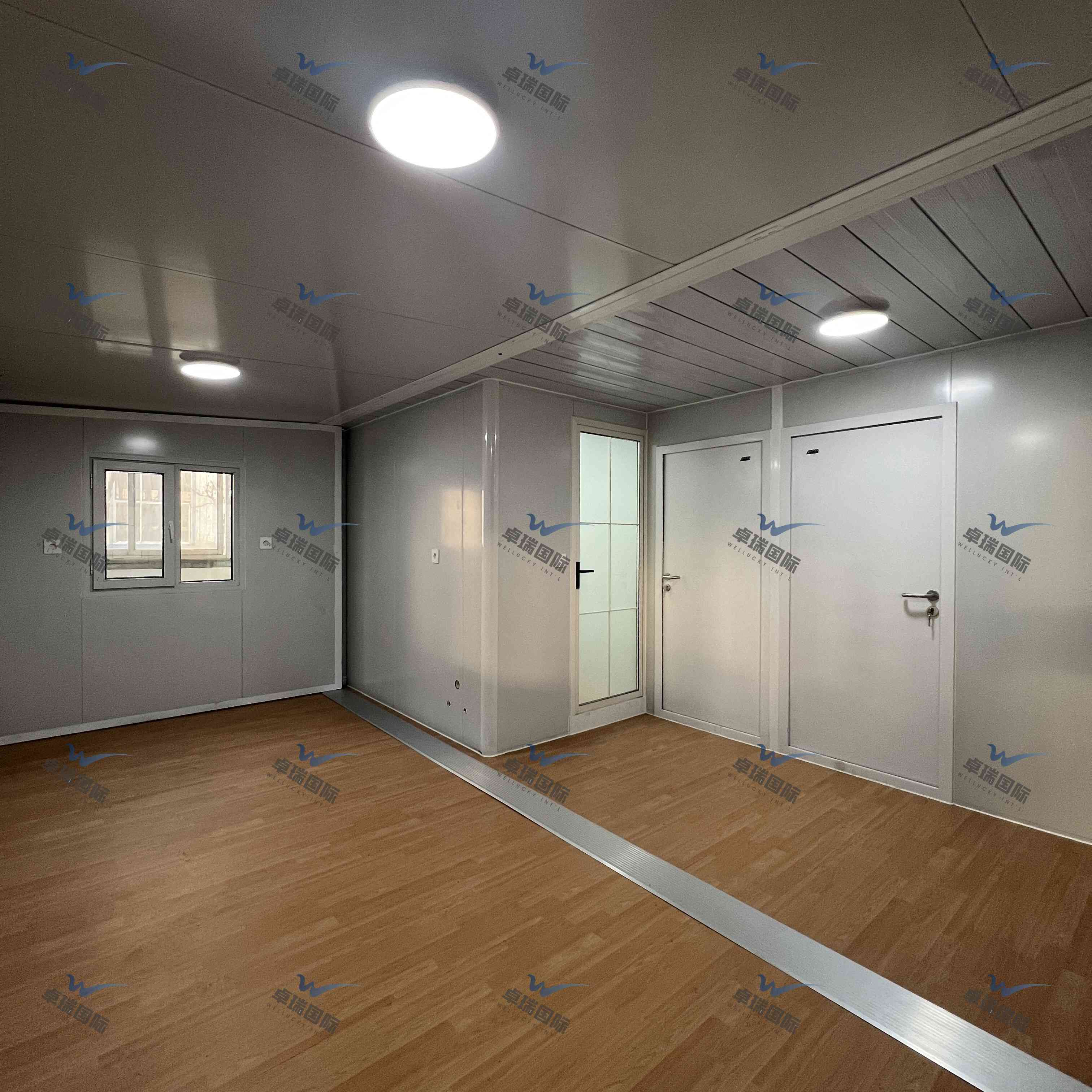

• Flooring:
  Center – 18mm fireproof cement fiber board
  Sides – 18mm bamboo plywood

🚪 Doors & Windows:

• Sliding window: 920mm × 920mm

• Steel single door: 840mm × 2030mm

⚡ Electrical Configuration:

• Circuit breaker: 32A leakage protector

• Lighting: Bull 30×30 flat lamp + large ceiling lamp

• Socket: International standard 3 & 5-hole (customizable)

• Switch: Double open or single key switch

• Wiring: Configured for lighting, air conditioning, and outlets per country requirements

📦 Container Loading:

One 40HQ shipping container can hold up to 2 full units, ideal for international logistics.

✅ Why Choose This Model?

• Fast folding structure with reinforced steel frame

• Spacious 37㎡ layout with efficient insulation

• Full set of electrical and interior systems pre-installed

• Ideal for construction sites, mobile living, or temporary shelters
