Product Description

📐 Specifications Summary:

• External Dimensions: 5800mm × 2438mm × 2620mm

• Main Frame Type: Bare frame steel 2.0m height

• Structural Load Capacity: Full frame with reinforced truss system

• Wall Type: Double-sided insulated sandwich panel with decorative film

• Electrical System: Includes switches, sockets, wiring, and breaker box

🛠️ Structural Breakdown:

1. Steel Structure

• Roof Beam:

• 30×30×1.0mm square tube ×1

• 15×15×0.8mm tube ×2

• Insulation: 75mm glass wool, 14kg/m³

• 2.0mm galvanized beam with 180mm top width

• Reinforced corner angles (210×150×190mm), 6 roof trusses:

• Sealed with 0.4mm color steel sheet, 360° interlock, waterproof

• Column Frame (Verticals):

• 2.0mm galvanized column beam, 160mm wide

• With 4 × corner angles (210×150×160mm)

• Support using 50×100×1.1mm square tubes ×9

• Side Beams & Top/Bottom Joins:

• Galvanized side beam: 210/150mm, 2270mm height

• Fitted with reinforced L-beam + full horizontal truss

• Equipped with 12× inner bolts & 30× internal rivets

2. Ceiling Tile

• 0.3mm 831 embossed aluminum ceiling panel

3. Base Frame

• 50mm or 75mm cement board base

4. Flooring

• 18mm base + optional cement board + floor leather

5. Roof Panel

• 1.0mm color steel corrugated sheet

6. Door

• Steel swing door 970×1970mm (mid-hinged type)

• AB door model optional

• 75mm wall specific

7. Windows

• 930×1130mm plastic sliding windows ×2

• For use with 75mm wall panel only

8. Wall Panel

• Double-sided 0.3mm pre-painted steel skin

• 75mm or 95mm EPS core (70kg/m³), decorative film surface

9. Rain Gutter

• 50mm PVC downpipes ×4

10–11. Trims & Corner Finishes

• Ceiling trim line, steel corner cover line

🔧 Accessories & Configuration:

12. Fasteners & Anchors

• Steel rivets ×3 bundles

• Drilling self-tapping screws:

• 4×20 round head ×80

• 12×75, 12×100 angle screws ×60

• 4×25 self-drilling screws ×40

• Expansion bolts ×12

• Joint bolts ×30

13. Packaging

• Packing tape, binding straps, air nail set, wrapping film

⚡ Electrical System:

14. Included Set

• Cables: 4㎡, 2.5㎡, 1.5㎡ copper wire

• Sockets:

• 2× five-hole

• 1× triple

• 1× single

• Switches: 2× dual switches

• Distribution Box:

• 1× high/low voltage distribution box

• 1× miniature circuit breaker

• 1× industrial 2P power breaker

• Others:

• 1× T-type industrial socket

• 1× standard industrial plug

📩 Need a custom layout or bulk order quote? Contact our team now.
👉 Click the floating WhatsApp/email/chat buttons on the right to reach us quickly.

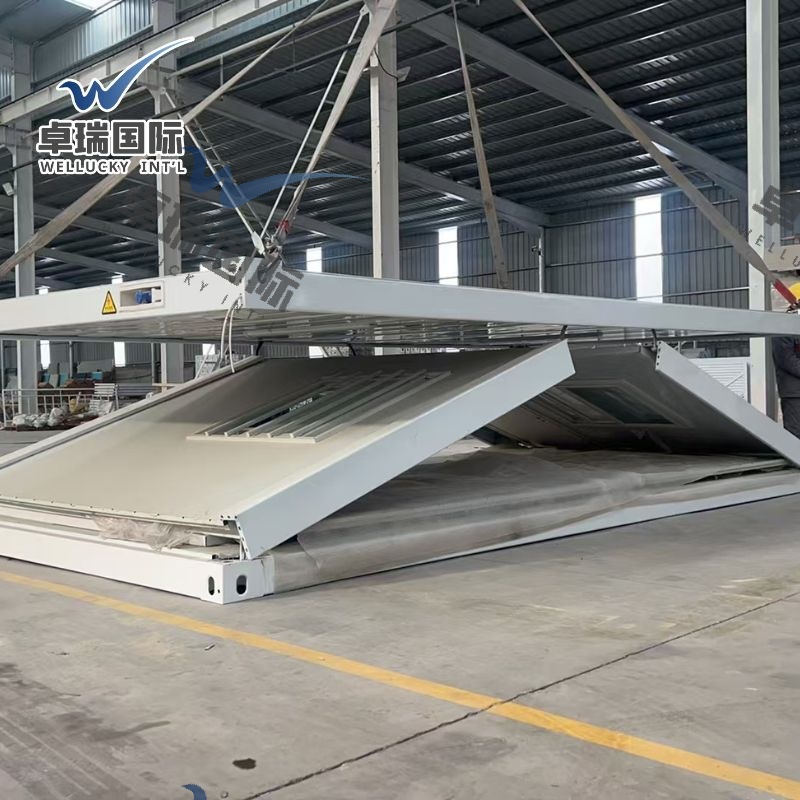

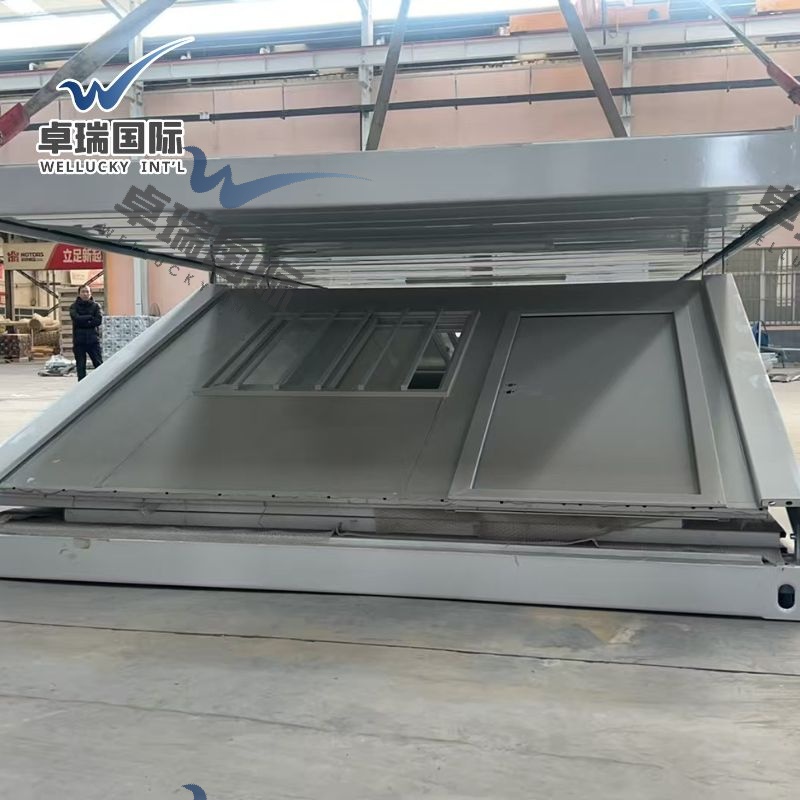

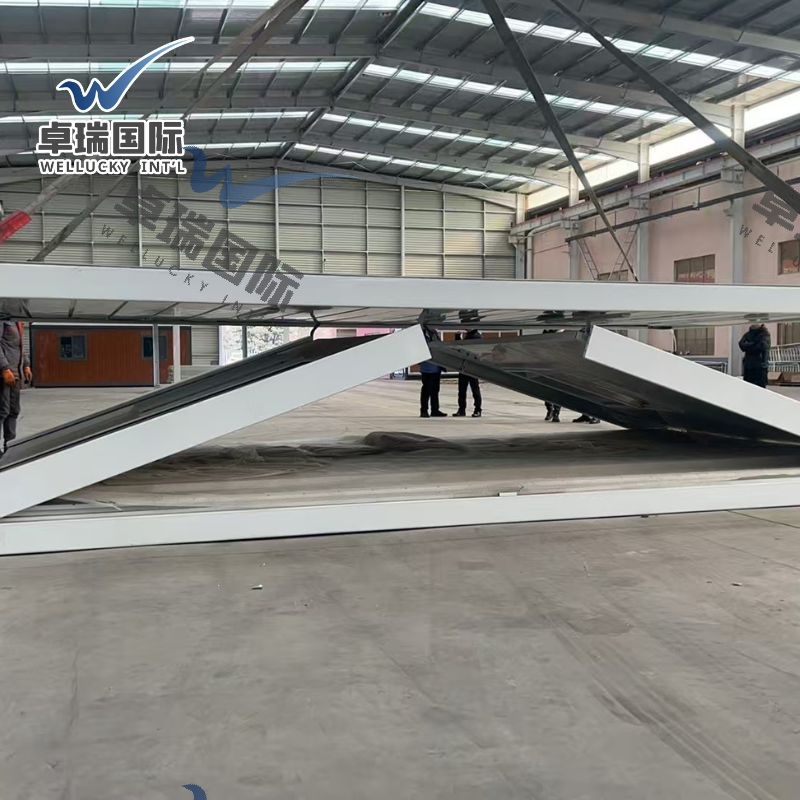

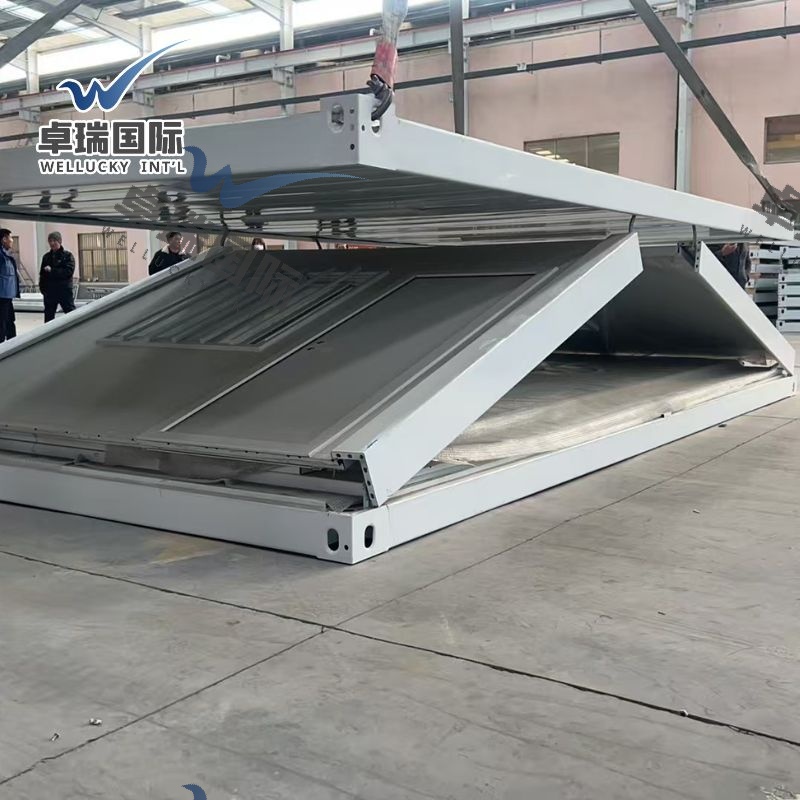

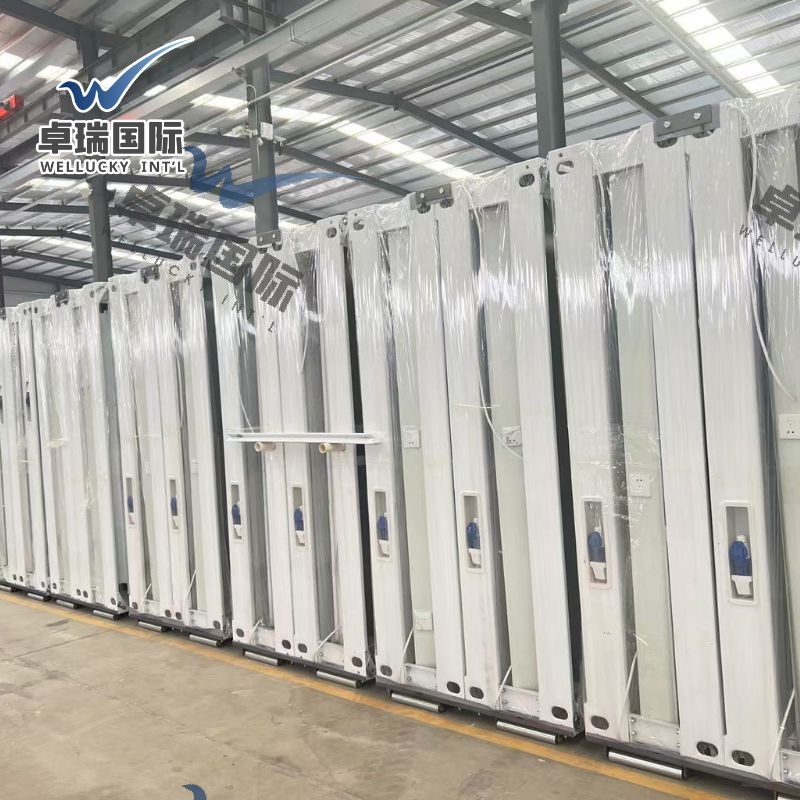

🌍 Worldwide shipping available – durable, foldable, and designed for rapid deployment.
