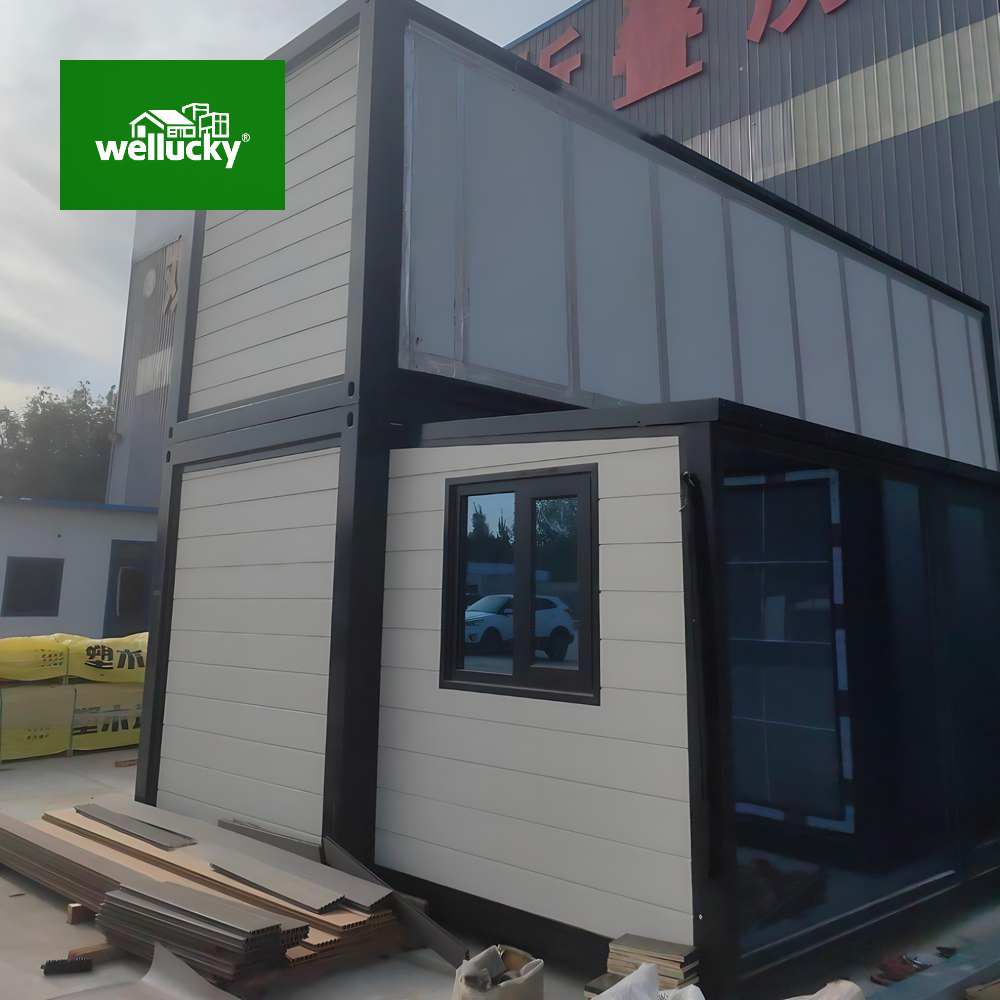

Product Descriptions
10-minute Quick Installation
1/2/3/4-bedroom expandable space
10/20/30/40FT flexible size
Advanced Heat Insulation / Soundproofing / Fireproof
Service life 15–25 years
Easy installation: 4 workers + 10 mins = 1 house
| Product Parameters | ||||
|---|---|---|---|---|
| 10FT | 20FT | 30FT | 40FT | |
| Expanded size (m)：L*W*H | 2.95 × 6.3 × 2.48 | 5.9 × 6.3 × 2.48 | 9 × 6.22 × 2.48 | 11.8 × 6.22 × 2.48 |
| Folded size (m)：L*W*H | 2.95 × 2.2 × 2.48 | 5.9 × 2.2 × 2.48 | 9 × 2.2 × 2.48 | 11.8 × 2.2 × 2.48 |
| Walls | Side walls, front and rear: T50mm EPS color steel plate Inner partition board: T50mm EPS color steel plate | |||
| Fire Rating | B1 | |||
| Loading Quantity (40HQ container) | 4 sets | 2 sets | 2 sets | 1 set |

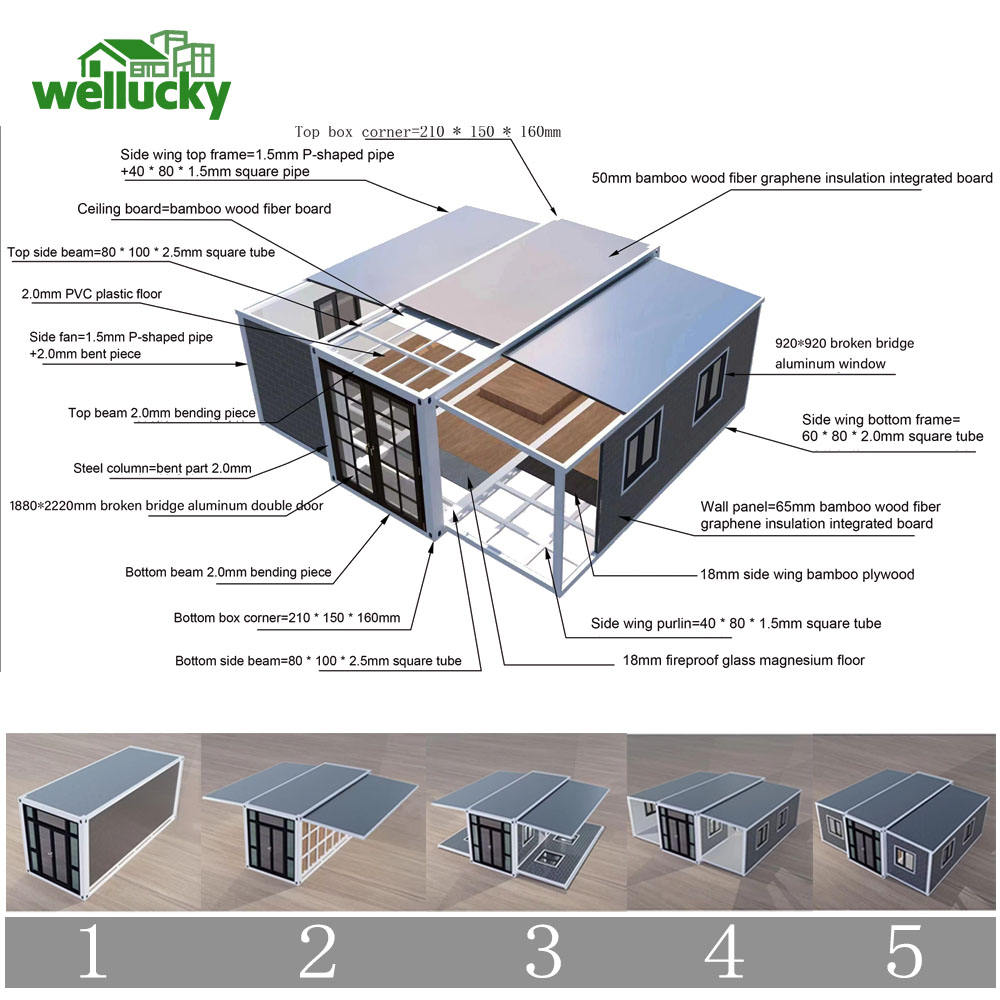

Frame and Exterior

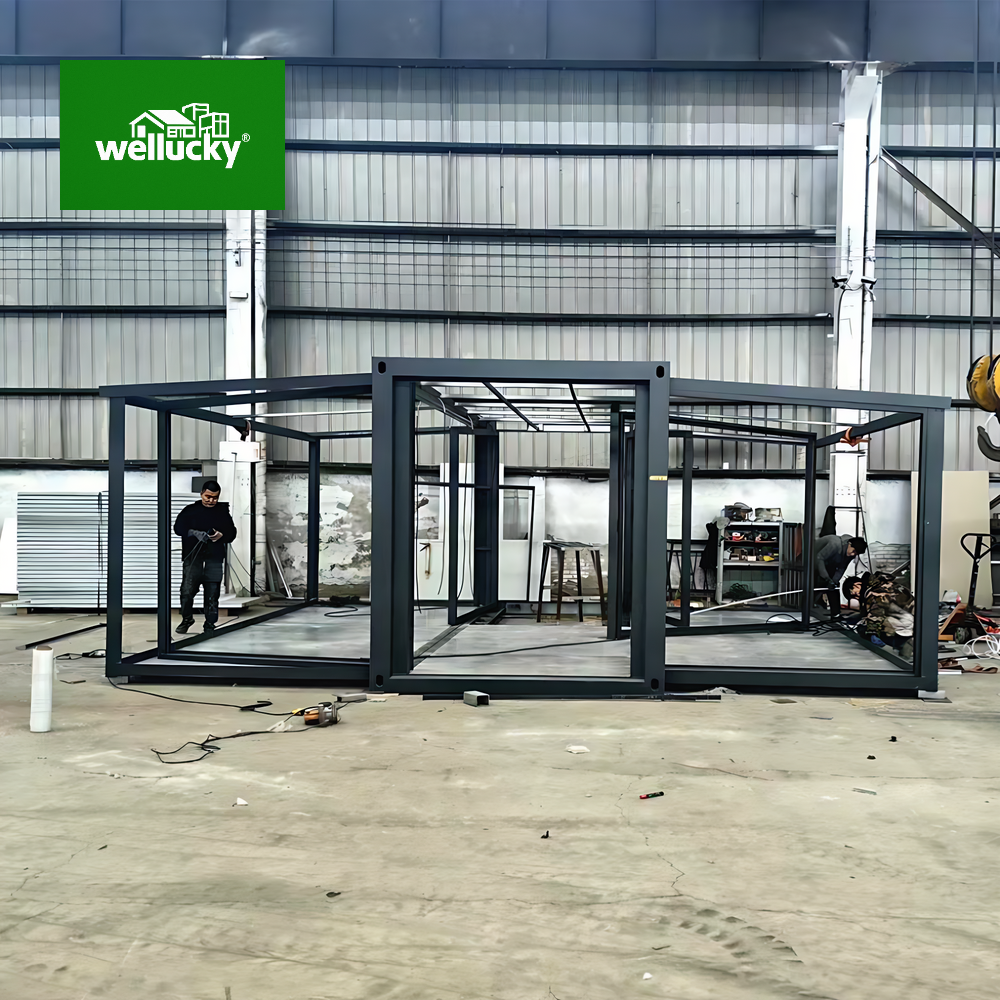

Galvanized steel frame

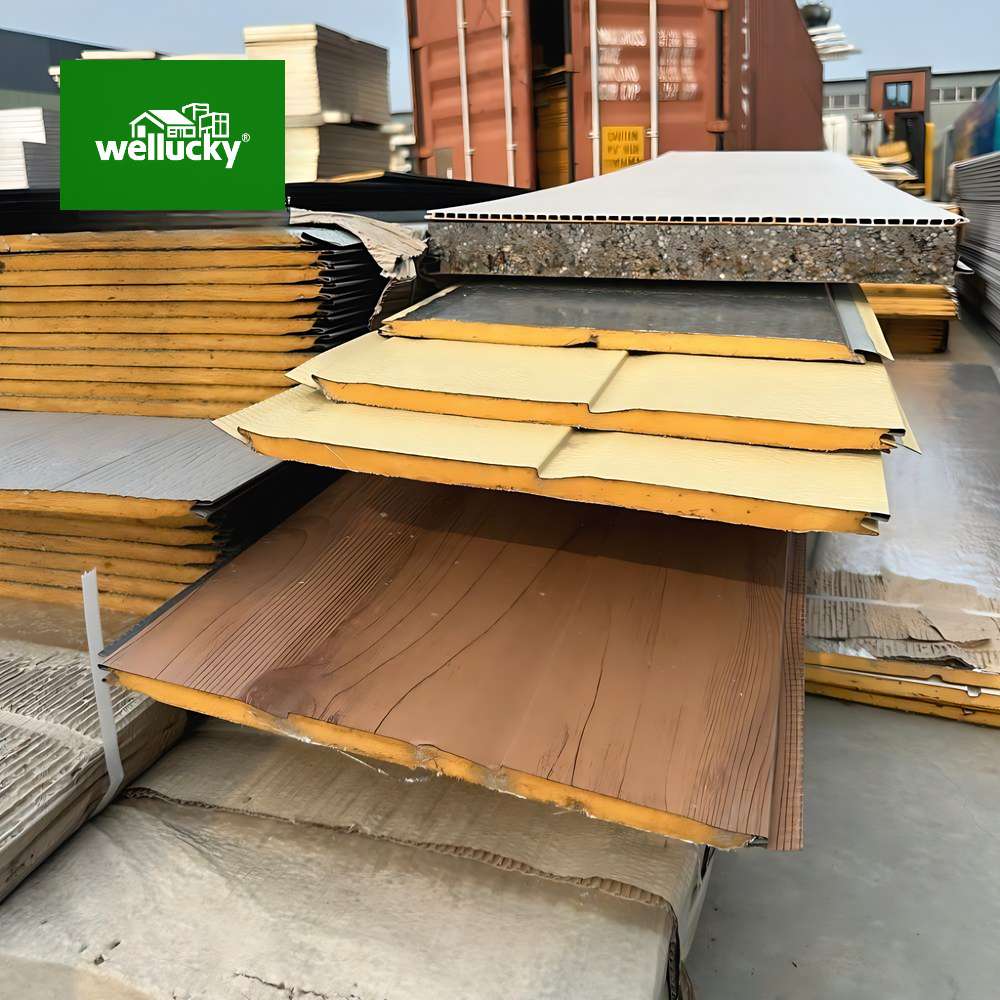

75mm EPS with double side 0.5mm steel sandwich panel
Cast-iron container pin holders
Internal Materials
18mm thick fireproof cement fiber floor
15mm MGO/BLUU board
2mm PVC vinyl floor
Roof
18mm thick fireproof cement fiber floor
2mm PVC vinyl floor
Doors and Windows
Plastic steel sliding window
Steel single door
The bathroom door has a frosted privacy film

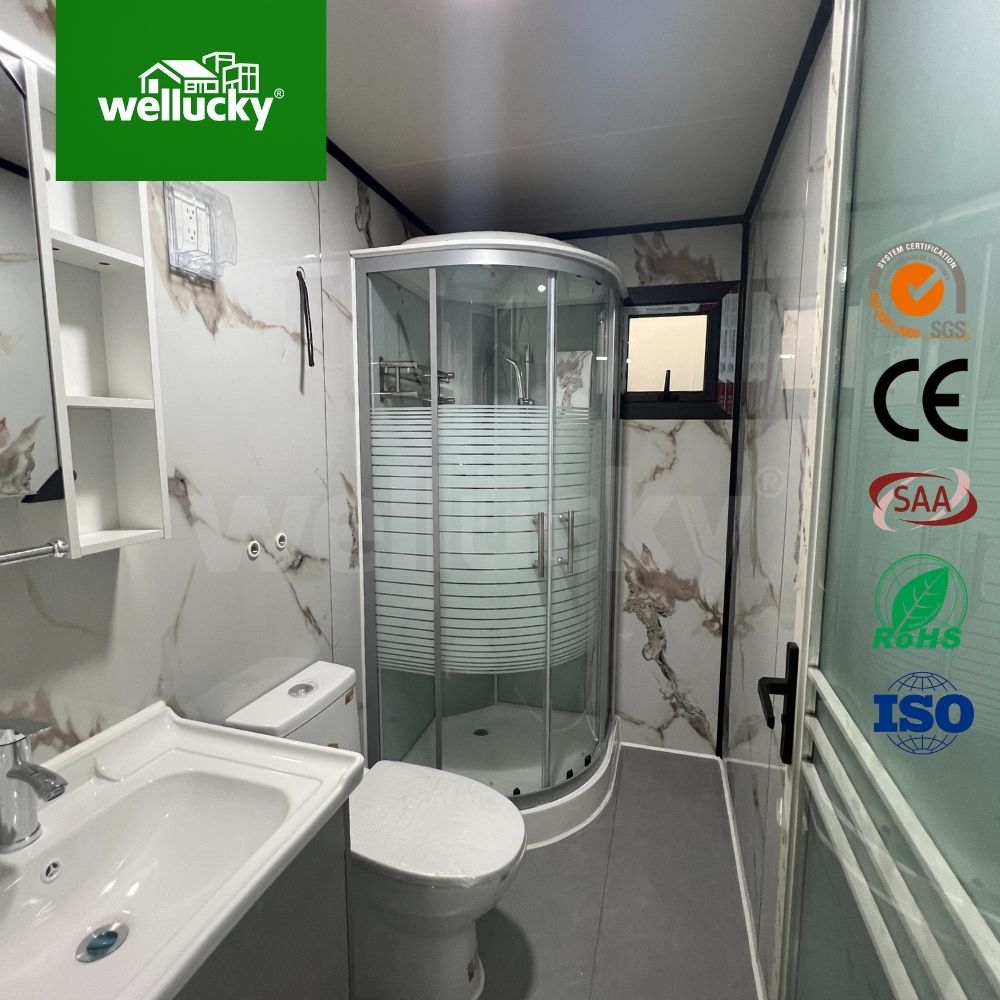

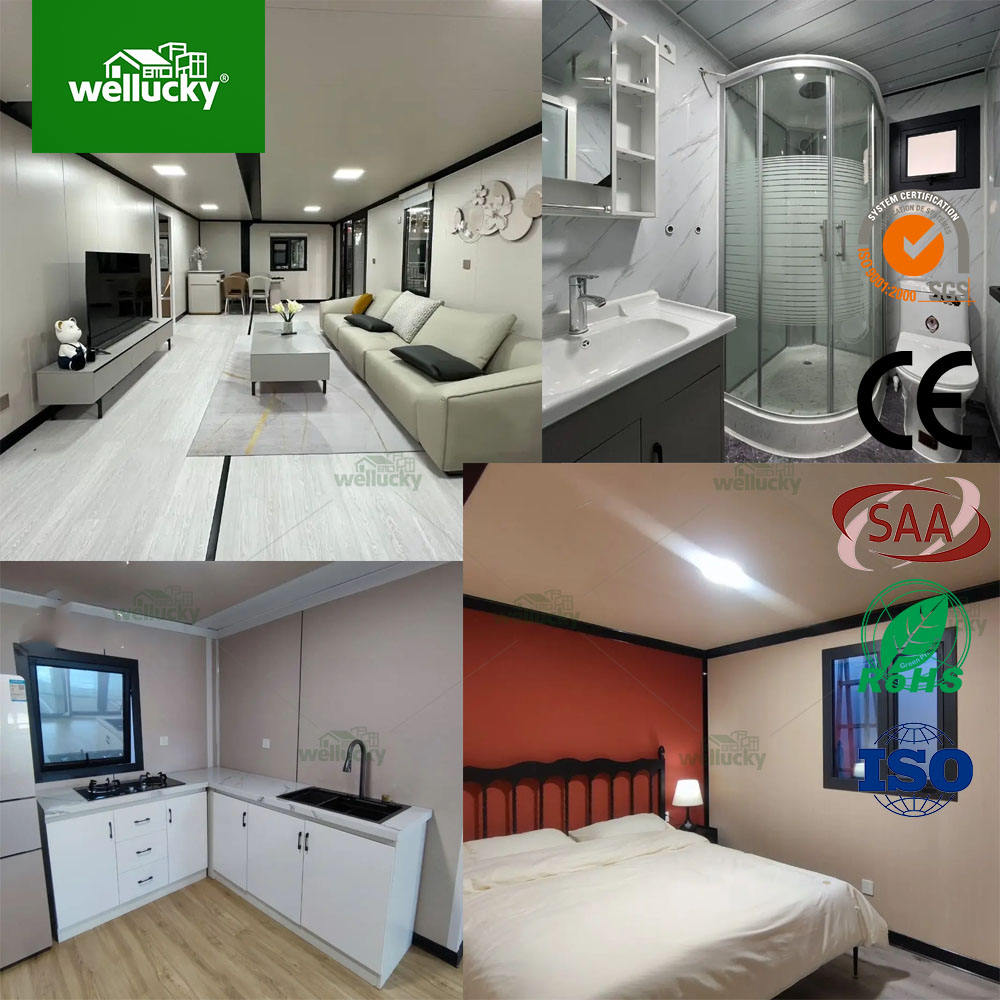

Bathroom
Full-length shower with screen and rainmaker shower head
Vanity basin with mixer tapware and mirror with storage
Soft-closing toilet lid
Installed exhaust fan

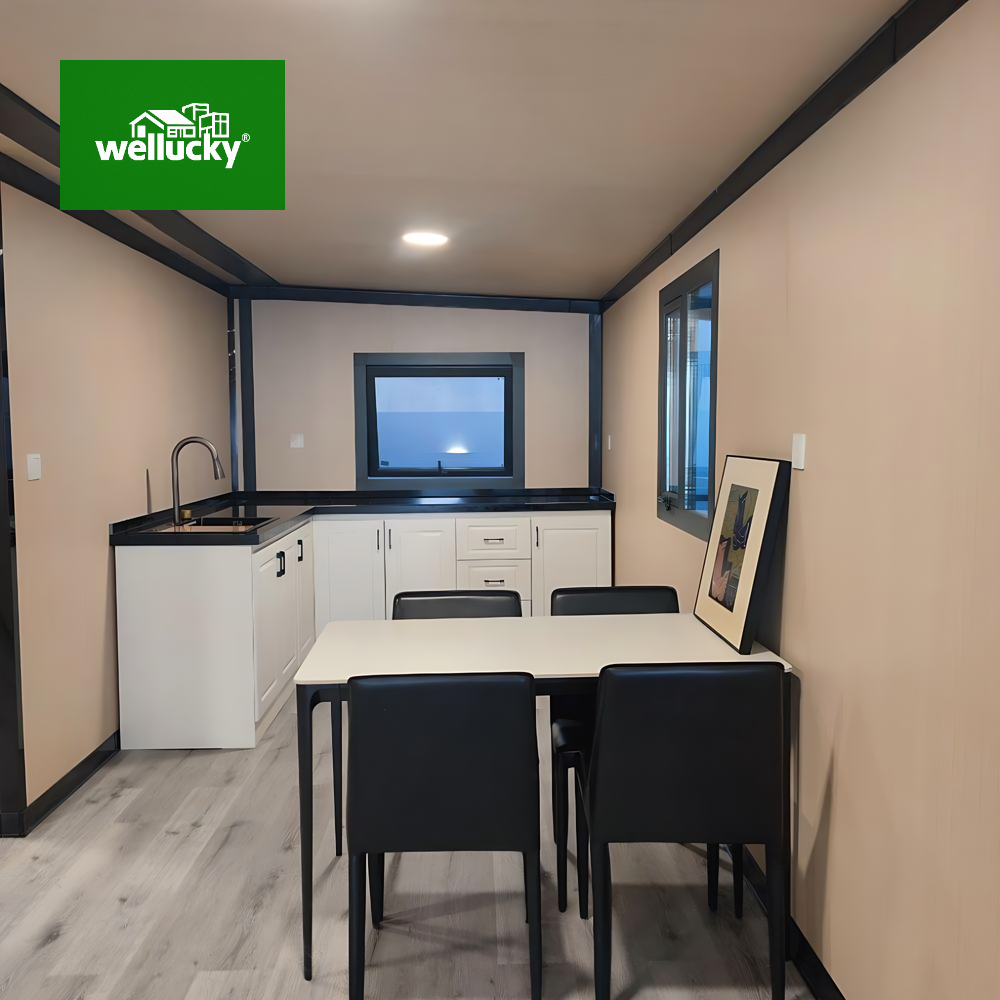

Kitchen
Quartz engineered stone benchtop
White cabinets with cupboards
Double-bowl stainless steel sink with mixer
Electrical
One 32A leakage protector, Voltage 220V, 50Hz

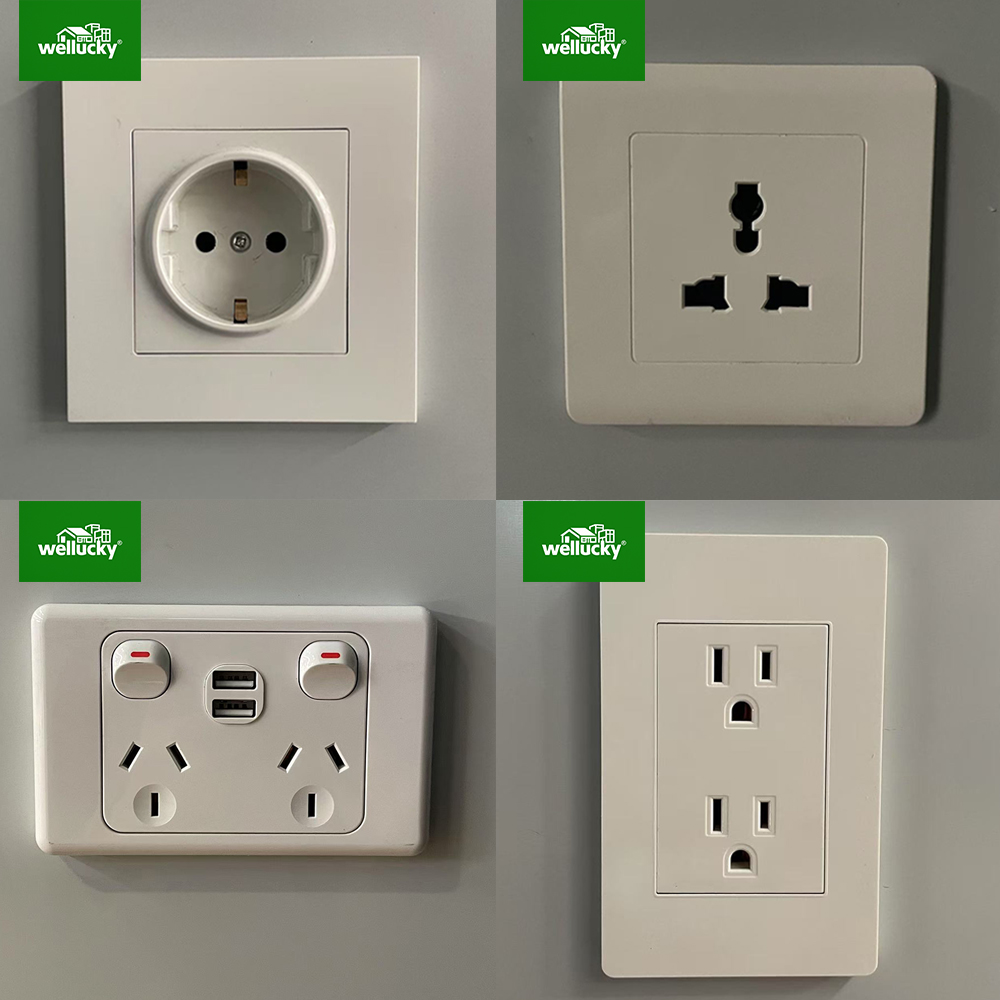

Standard international three hole and five hole sockets (configurable to customer requirements)
Pre-wired outlet
Data Analysis
✅ Anti-earthquake level: 8
✅ Floor load: 300 kg/m²
✅ Snow pressure middle top: 1.5 kn/m²
✅ Wind resistance rating: 0.6 kn/m²
✅ Snow pressure bevel top: 1.3 kn/m²
✅ Top middle load: 150 kg/m²
✅ Thermal conductivity: 0.039
✅ Top slope load: 130 kg/m²

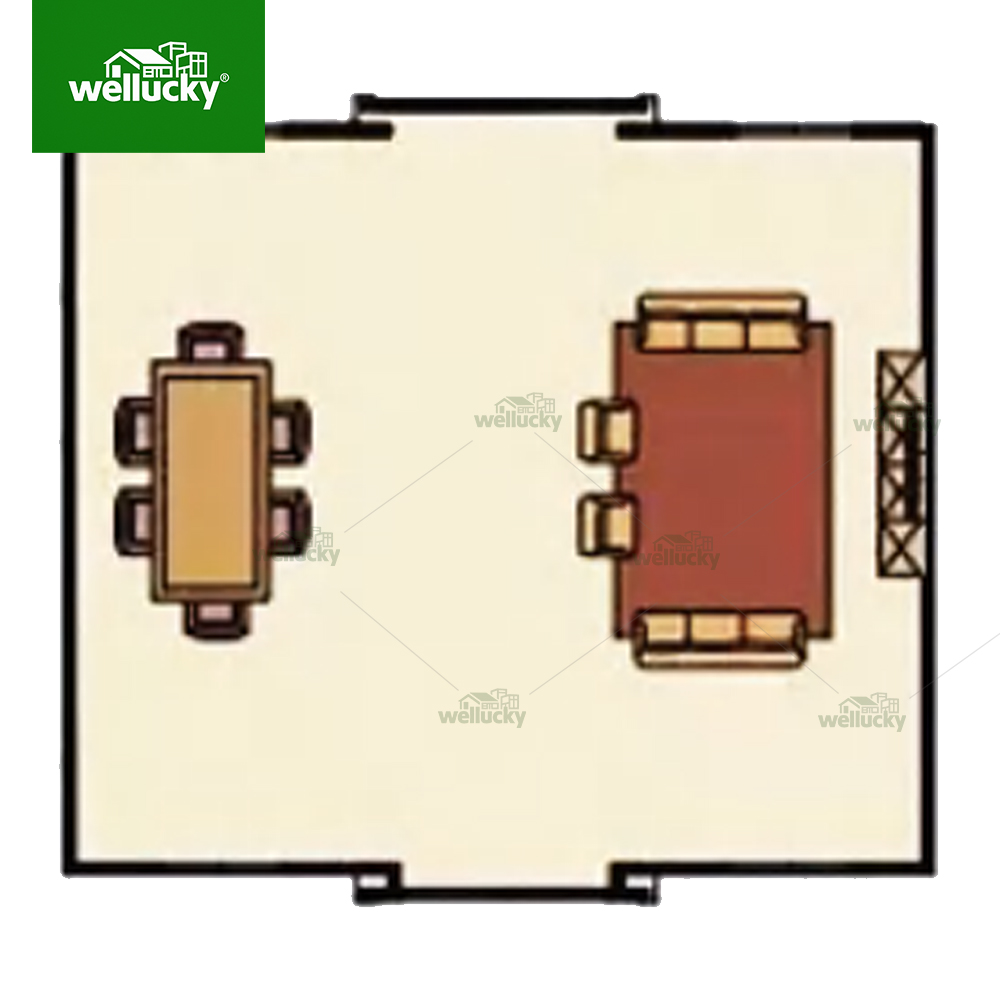

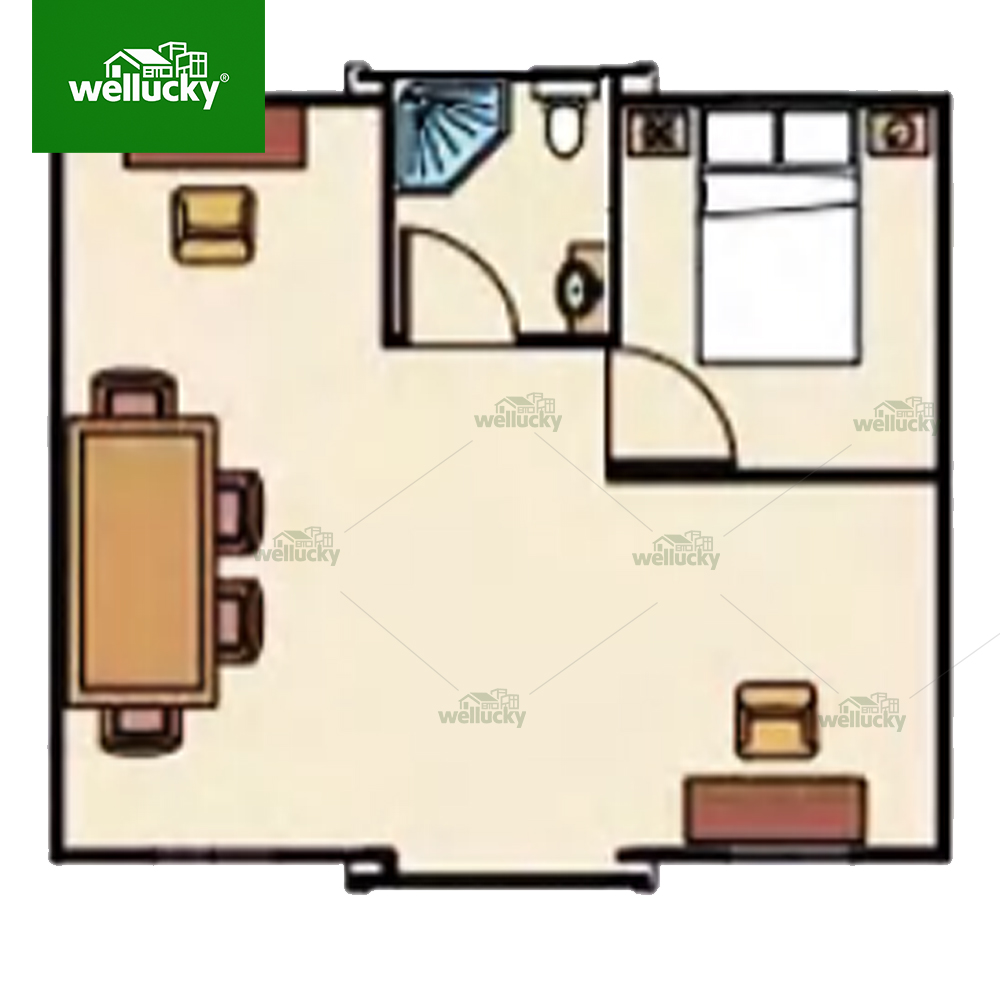

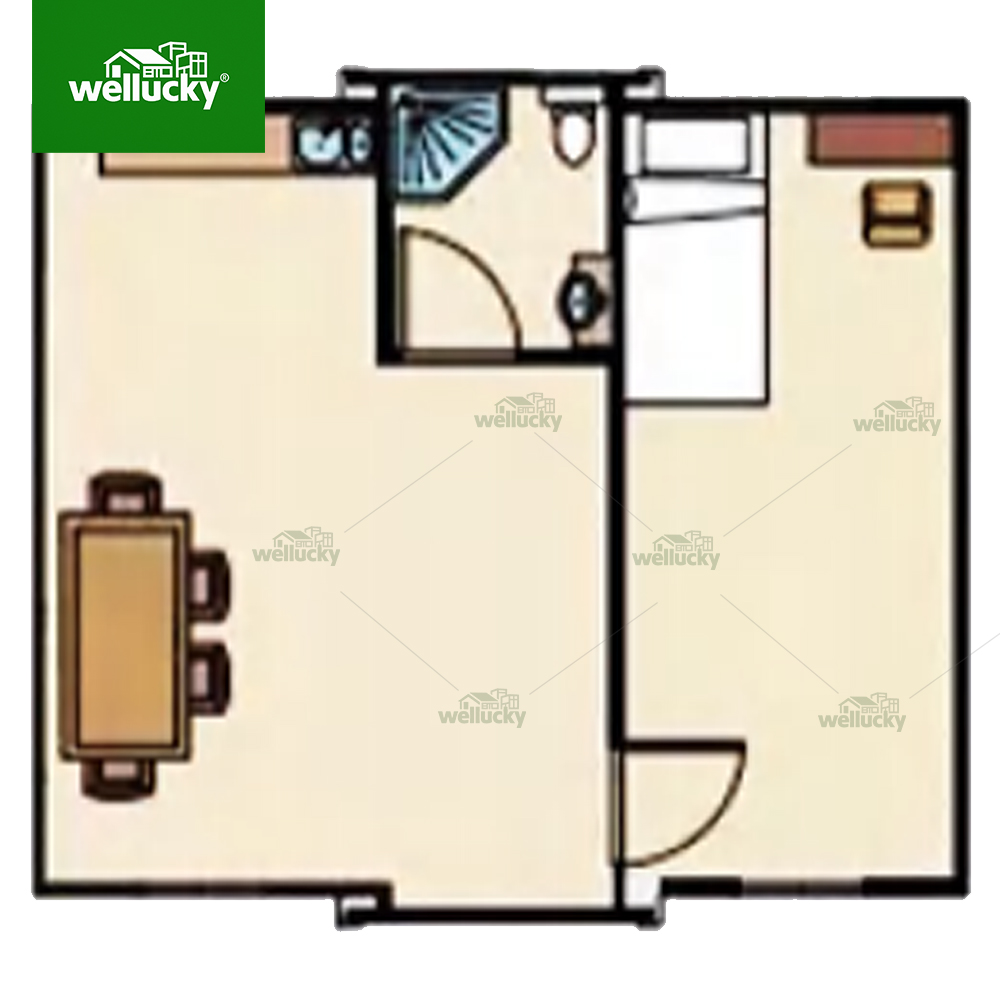

 1 bedroom |  1 bedroom 1 bathroom |  1 bedroom 1 bathroom |

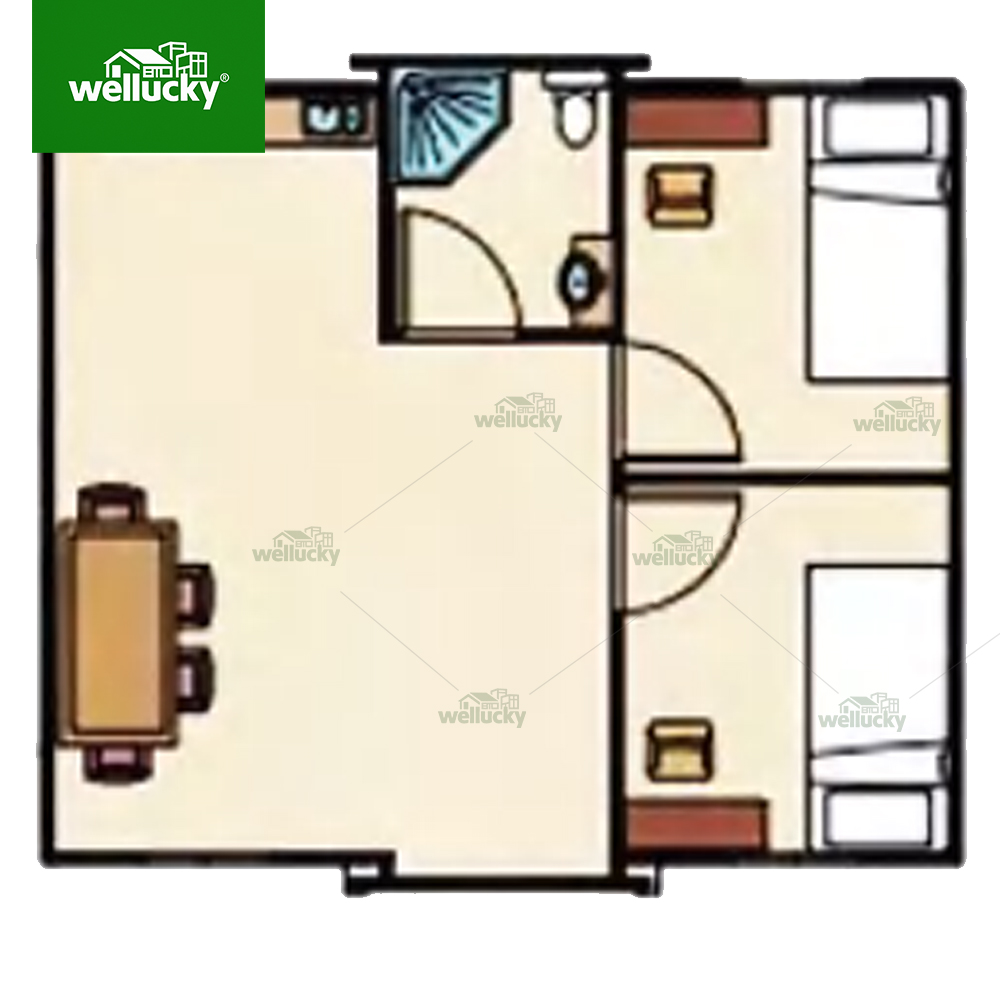

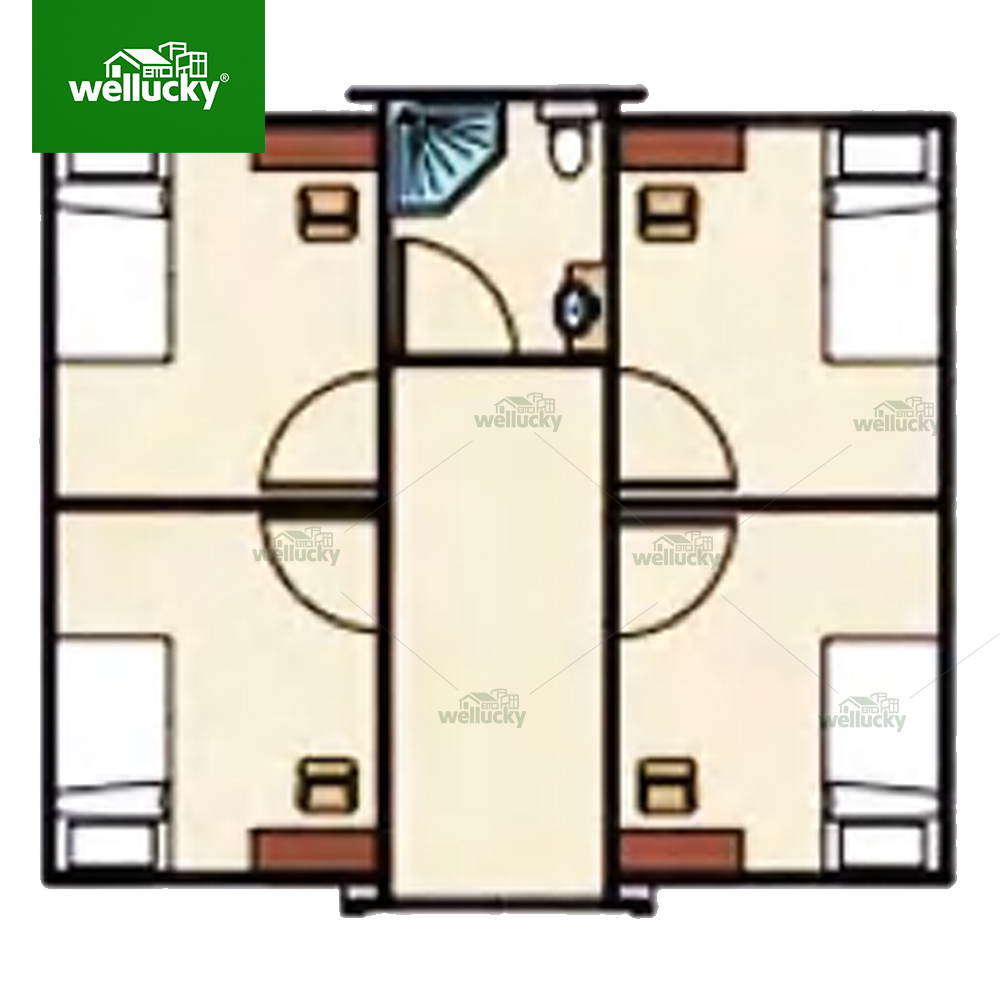

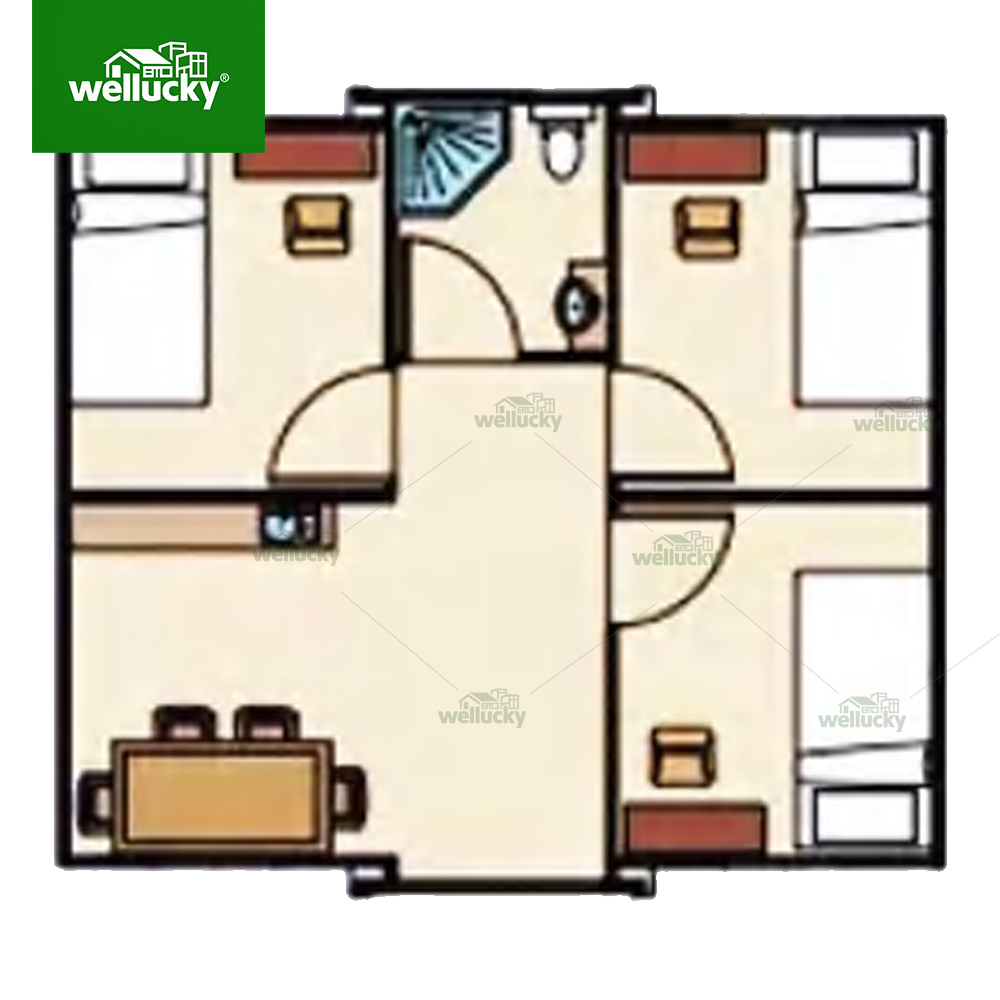

 2 bedroom 1 bathroom |  3 bedroom 1 bathroom |  4 bedroom 1 bathroom |
In terms of structure and house layout,
we can meet all your needs,
you can choose according to your heart

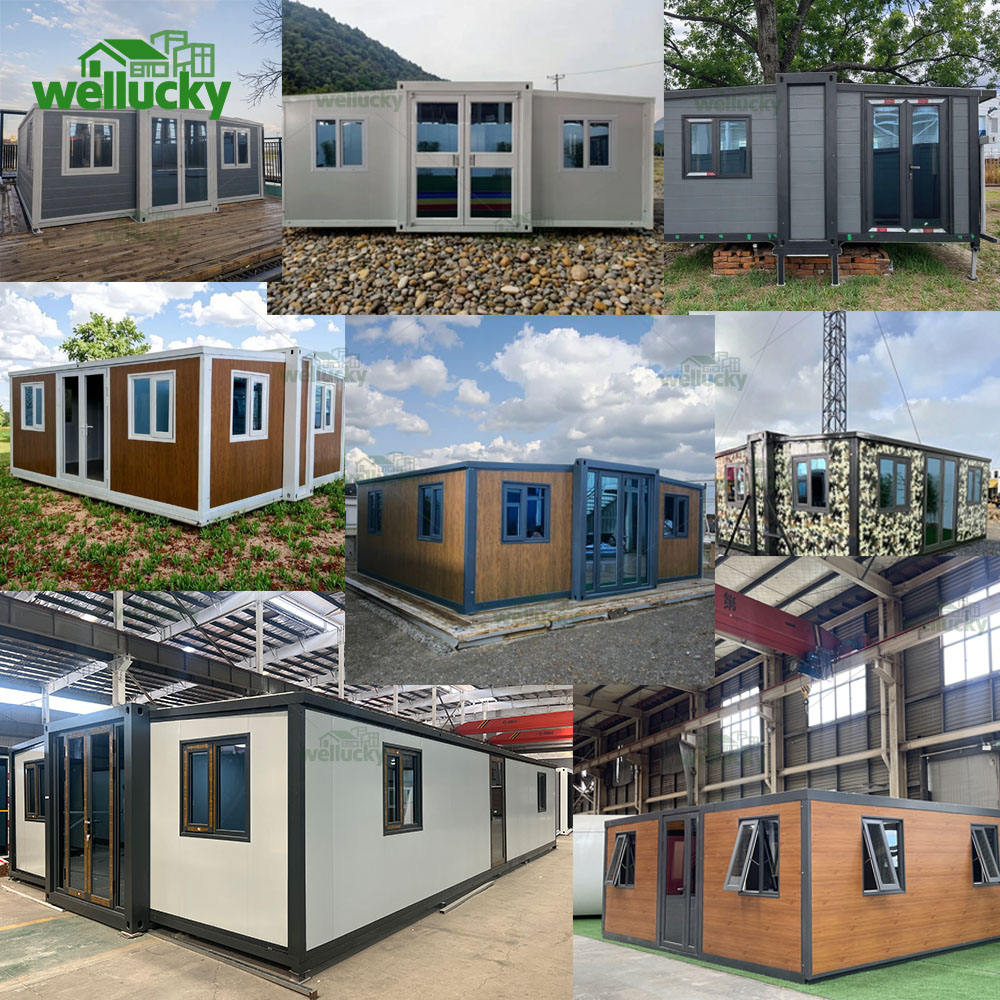

 Vacation Travel |  Home Living |  Office Business |

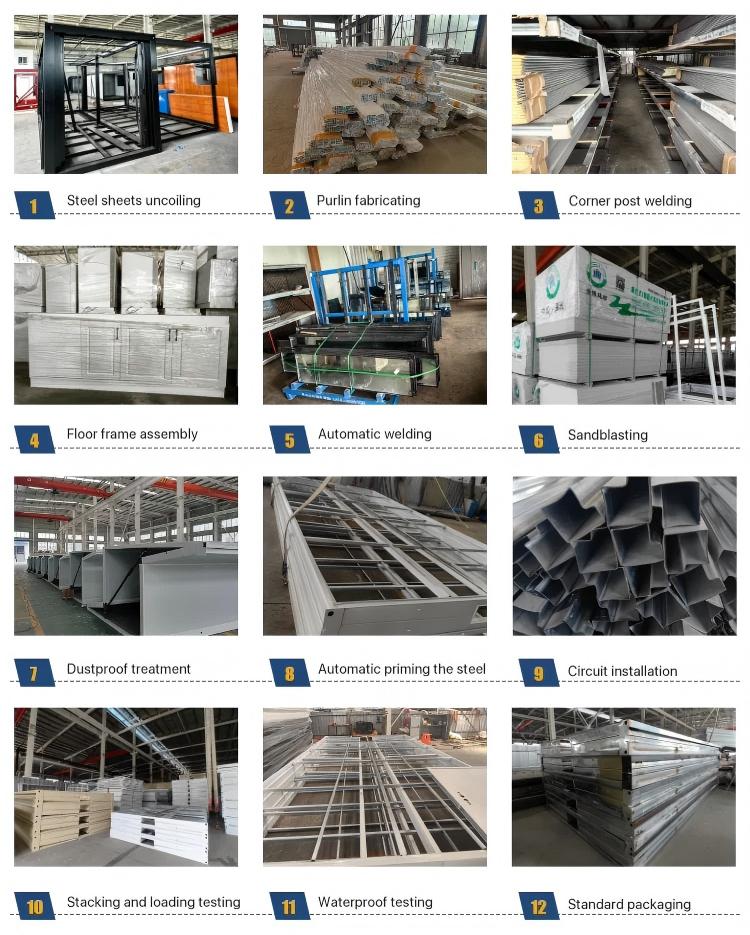

Raw material QC, production process QC, finished product QC,Performancetesting QC, packaging QC, 5 QC testing lines,A team of 30 QC engineerswith 12 QC processes. Product qualification rate of 100%
Space-saving Foldable Design

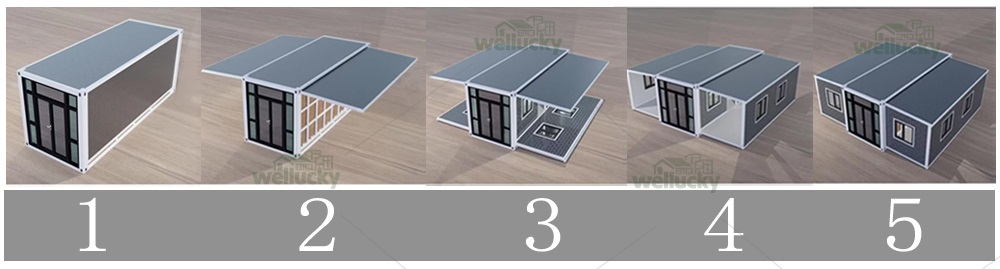

A: The bi-wing structure can be folded into a compact unit, reducing the shipping volume by 60%, making it easy to transport by truck, ship, or plane. With just a small amount of tools, it can be unfolded within 2 hours, creating a spacious ready-to-use environment.Durable, weather-resistant structure
A: Made of high-strength galvanized steel and insulated composite panels to withstand extreme temperatures, heavy rain, and strong winds. Fire- and corrosion-resistant materials ensure long-term durability in harsh conditions.Customizable Layout and Decoration
A: Choose studio, multi-room or open-plan configurations. Optional upgrades: graphene heated floors, solar panels, HVAC systems, and classy interior finishes (wood, laminate or eco-friendly materials).Environmentally friendly and energy-saving
A: Sustainable materials with energy-saving features such as double-glazed windows and LED lighting. Optional off-grid: solar power + rainwater collection system.Application
A: Emergency Shelter: Quick deployment for disaster relief or refugee resettlement
Remote Construction Sites: Comfortable, safe accommodation for mining, oil or construction teams

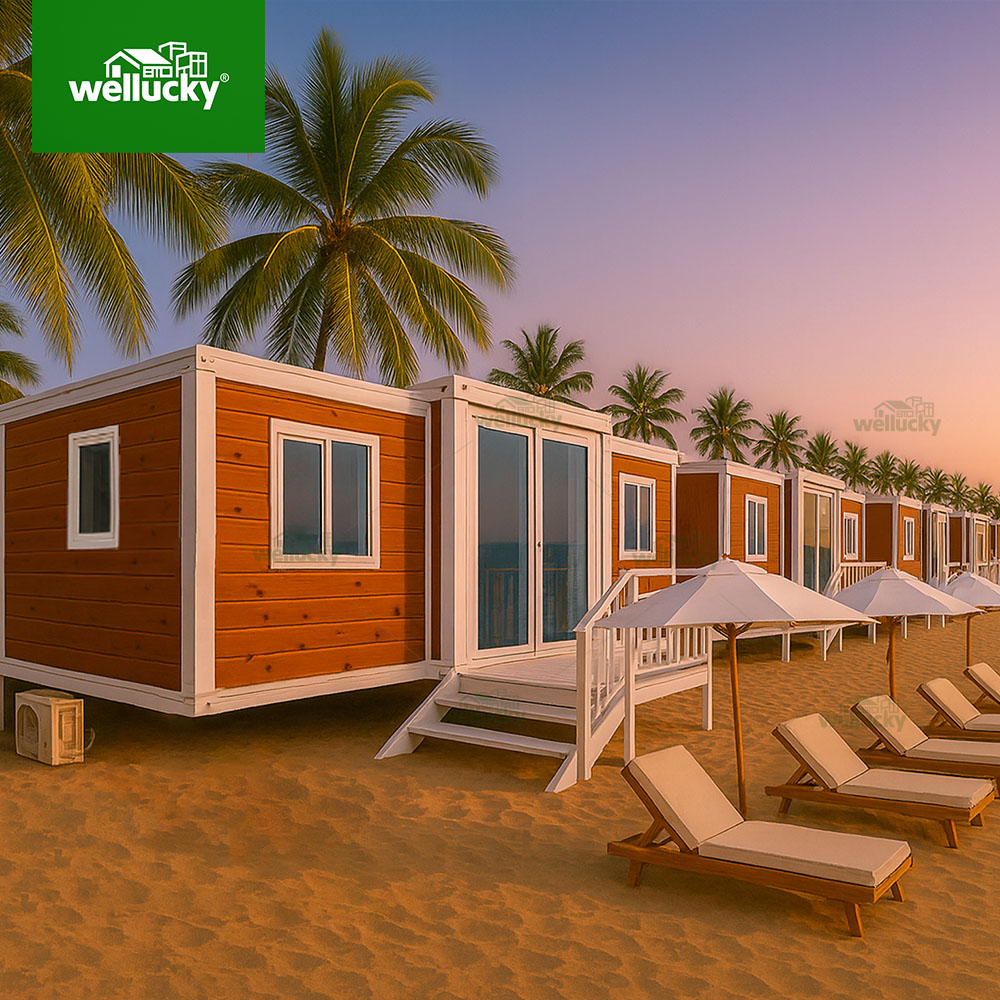

Travel and Camping: Luxury portable cabin for eco-resorts or adventure travel
Temporary Housing: Economical, quick installation for urban expansion or event useWhy choose our double-wing folding house?
A: Unparalleled Portability: Movable anytime, anywhere
Quick Installation: Ready within hours, not weeks
Cost-Effective: Save up to 30% on transport and installation
Durable: Low maintenance, long service life
