Product Description

🔧 Product Highlights:

• Expanded Size: 5900mm × 4800mm × 2480mm

• Internal Dimensions: 5460mm × 4640mm × 2240mm

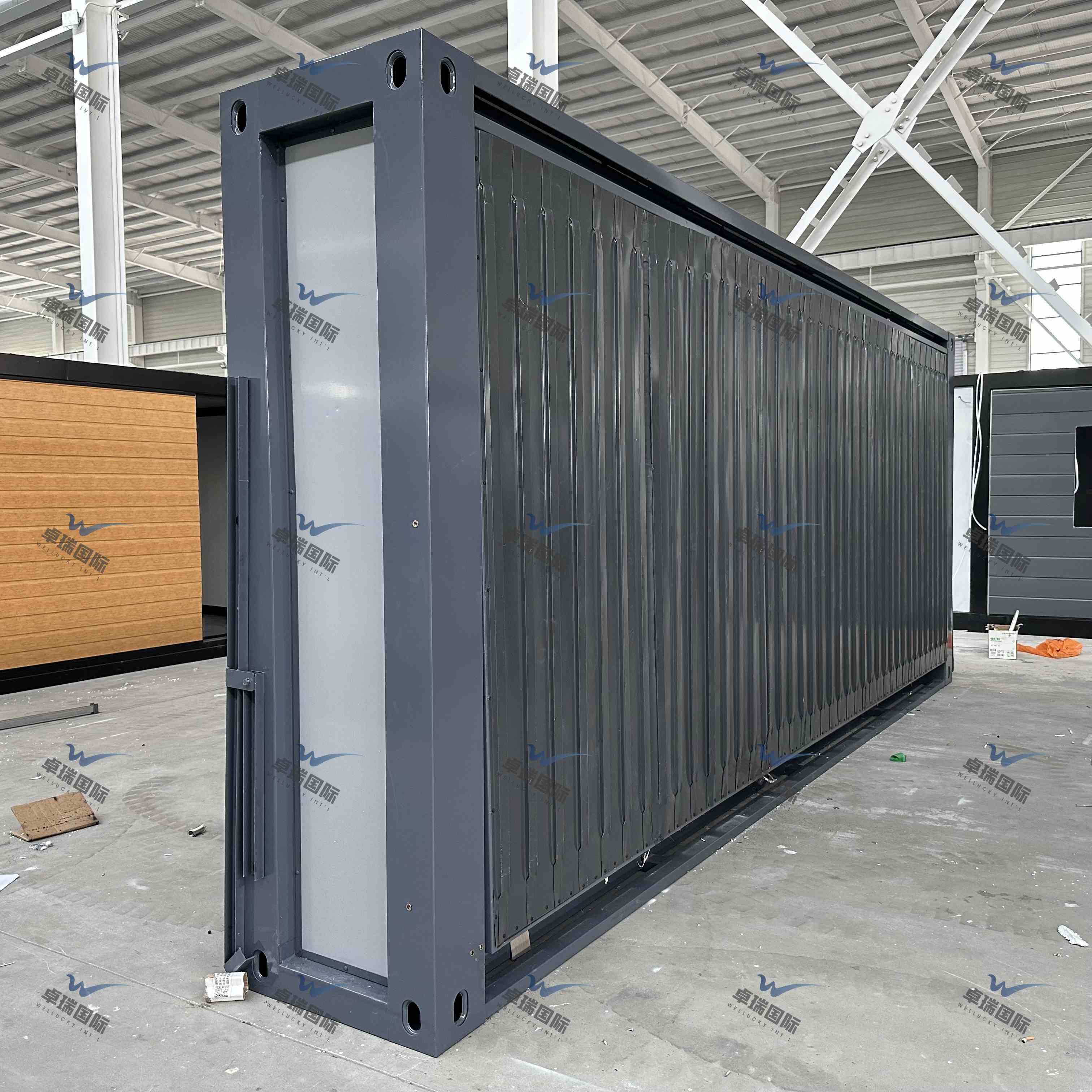

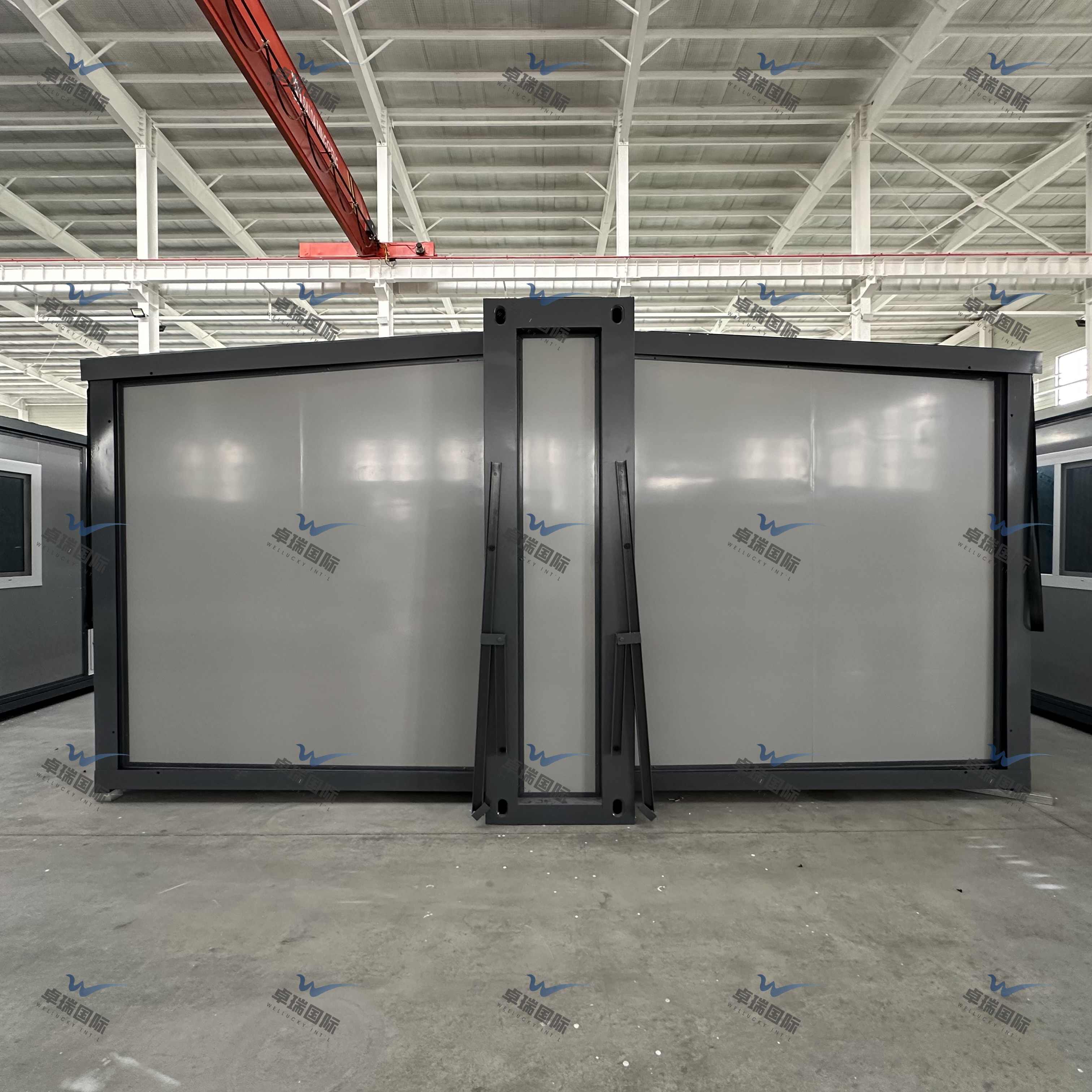

• Folded Size: 5900mm × 700mm × 2480mm

• Floor Area: 27.5㎡

• Weight: 1.95 tons

• Capacity: 2–4 people

• Power Configuration: 12KW / 220V / 50Hz

🛠️ Frame & Material Structure:

• Main Frame (Fully Galvanized):

• Beams: 80×100×2.5mm square tube with 2.0mm bending

• Galvanized hanging head: 210×150×160mm

• Steel column with anti-rust spray coating

• Side Frame:

• Top: 40×80×1.5mm P-shaped / square tube

• Bottom: 60×80×2.0mm square tube

• Folding hinge: 130mm galvanized hinge

• Protective Coating:
  Electrostatic spray molding with white plastic powder

🧱 Wall, Roof & Floor Construction:

• Roof:
  T50mm EPS sandwich panel + 0.4mm corrugated veneer

• Ceiling:
  200-type ceiling panel

• Walls:
  T65mm EPS for external, T50mm EPS for internal partition

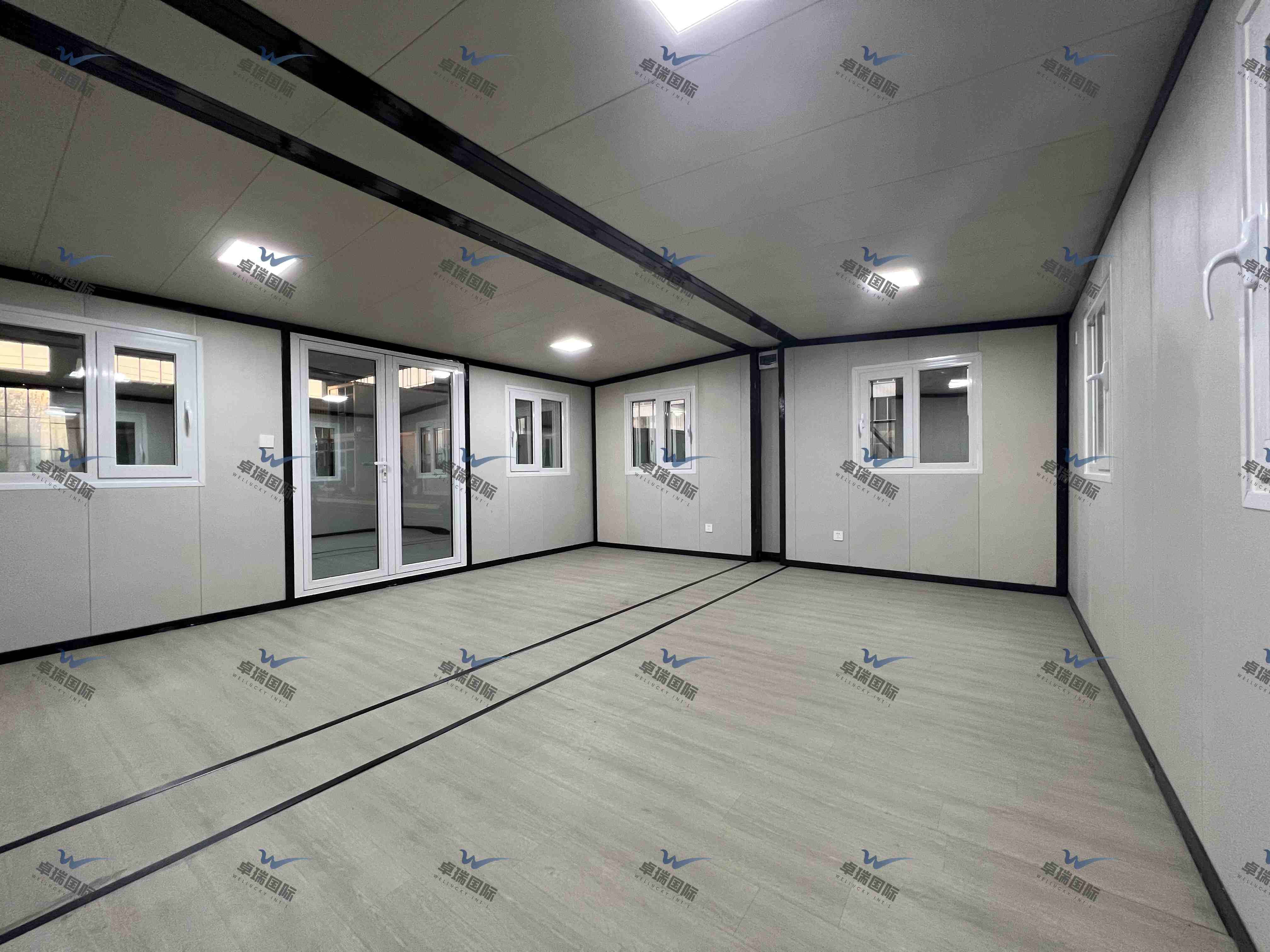

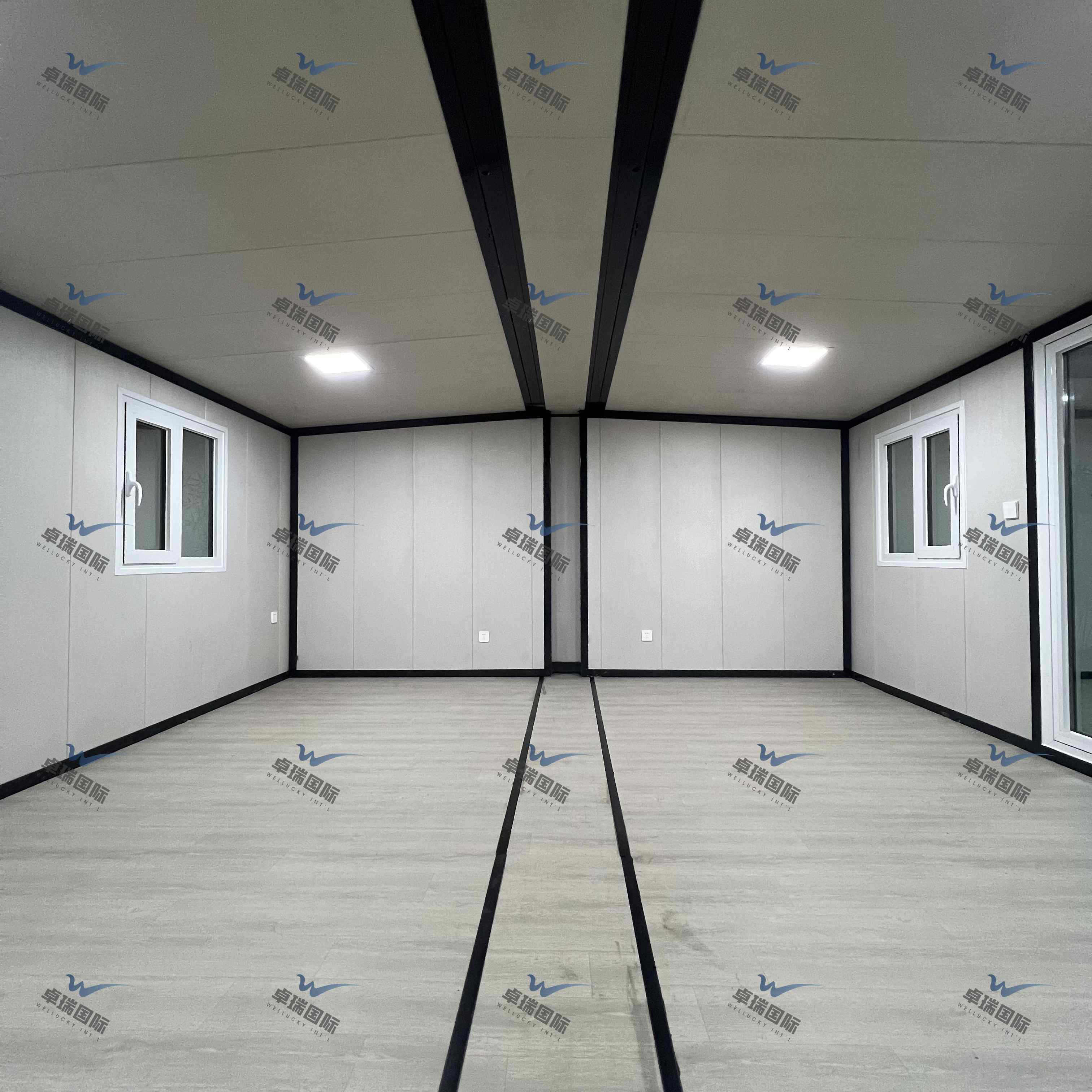

• Flooring:
  Center – 18mm fireproof cement fiber
  Both sides – 18mm bamboo plywood

🚪 Doors & Windows:

• Plastic steel sliding window: 920×920mm

• Steel single door: 840×2030mm

⚡ Electrical System:

• 32A leakage circuit protector

• Lighting: Bull 30*30 flat lamp + large ceiling lamp

• Sockets: Standard 3-hole and 5-hole sets (customizable)

• Switches: Double open/single key (configurable)

• Wiring includes air conditioning, lighting, and general outlets per region specs

📦 Container Loading:

One 40HQ shipping container can load up to 6 sets of this compact model – highly space-efficient for overseas delivery.

✅ Why Choose This Model?

• Slim folded width (only 700mm) for easier transport

• Ideal for narrow construction sites or portable housing camps

• Built with full galvanization for long-term use

• Fully pre-installed electrical and flooring system

• Low-cost, flexible, and fast to install
