Product Description

🔧 Product Features:

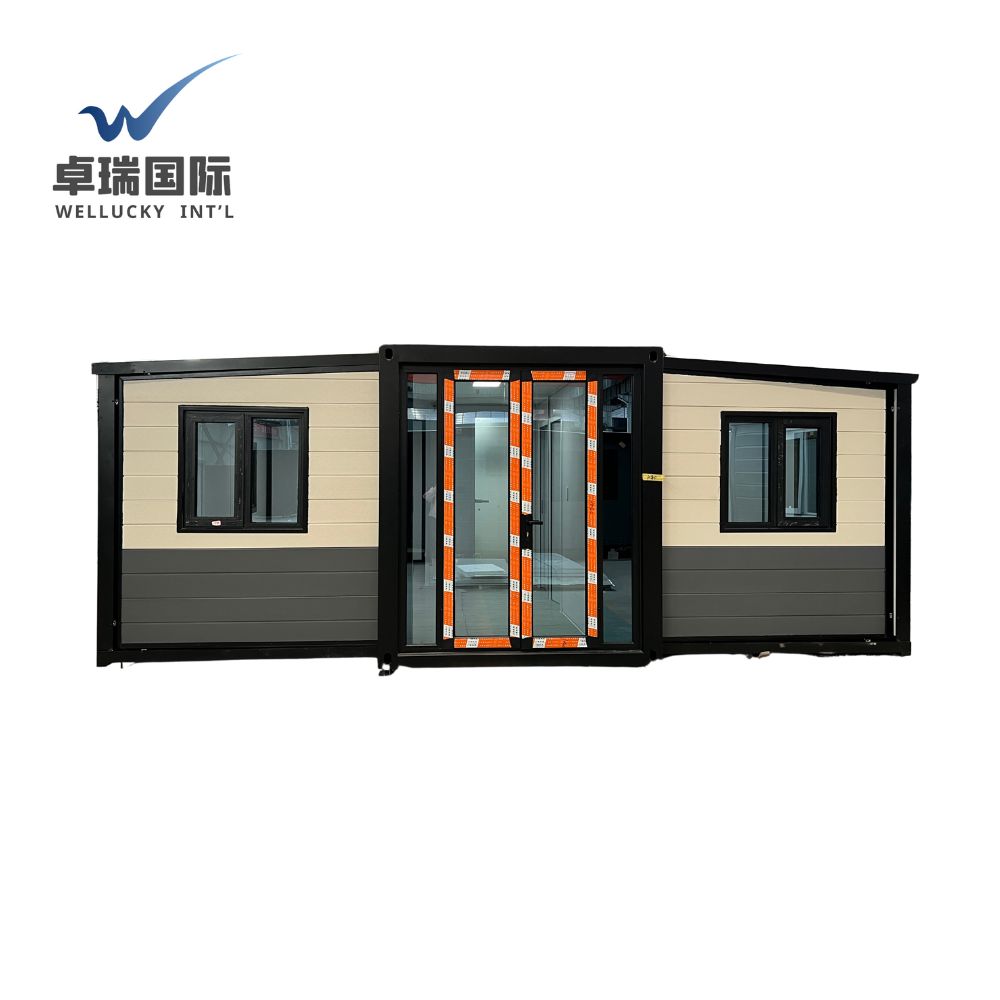

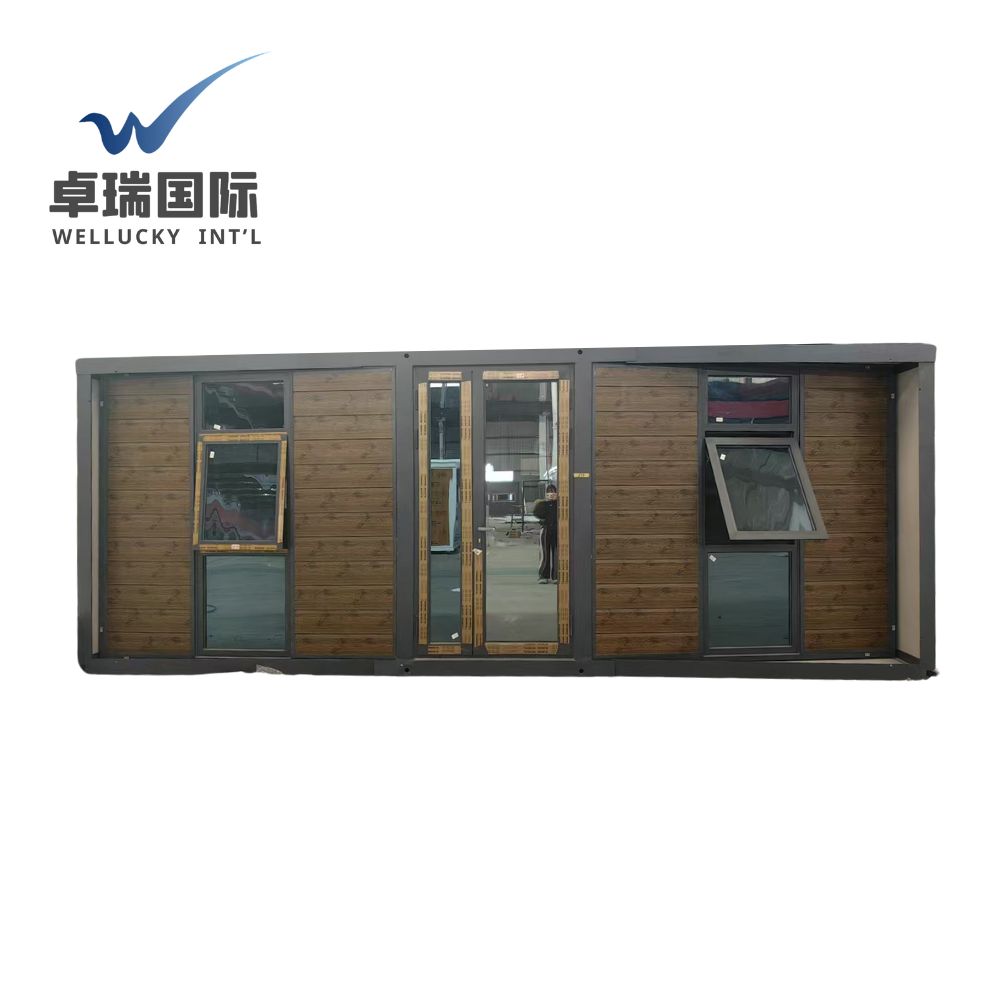

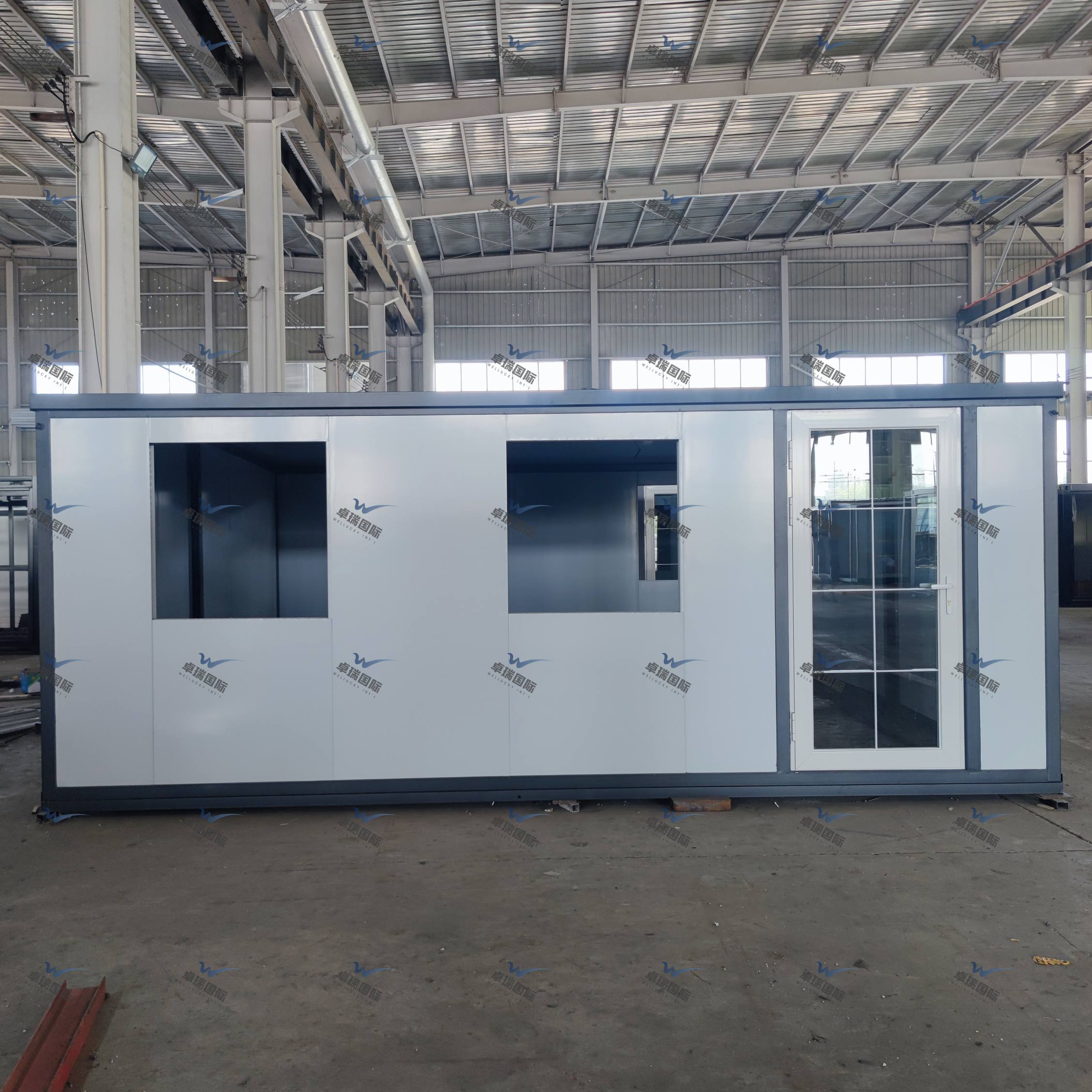

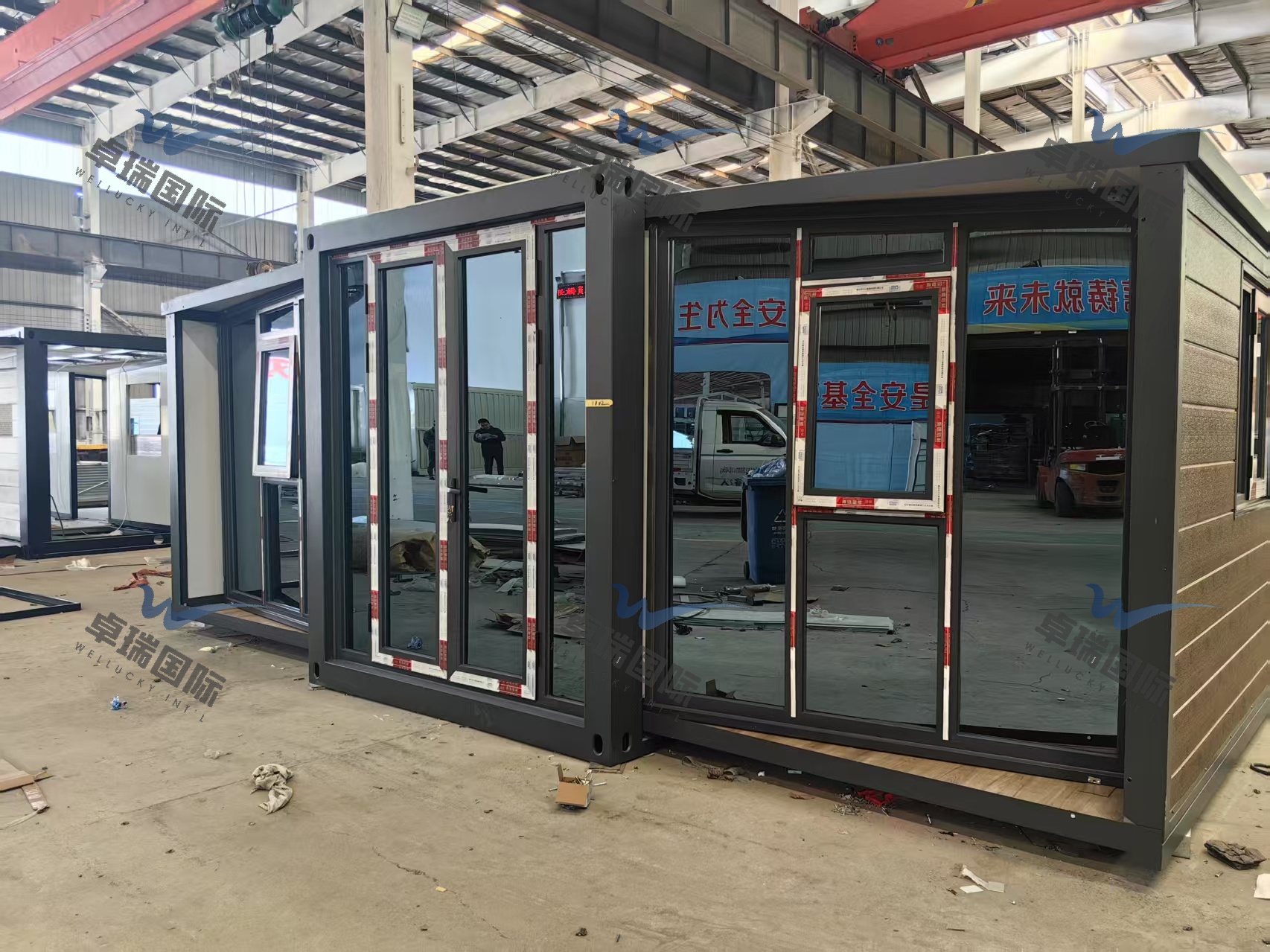

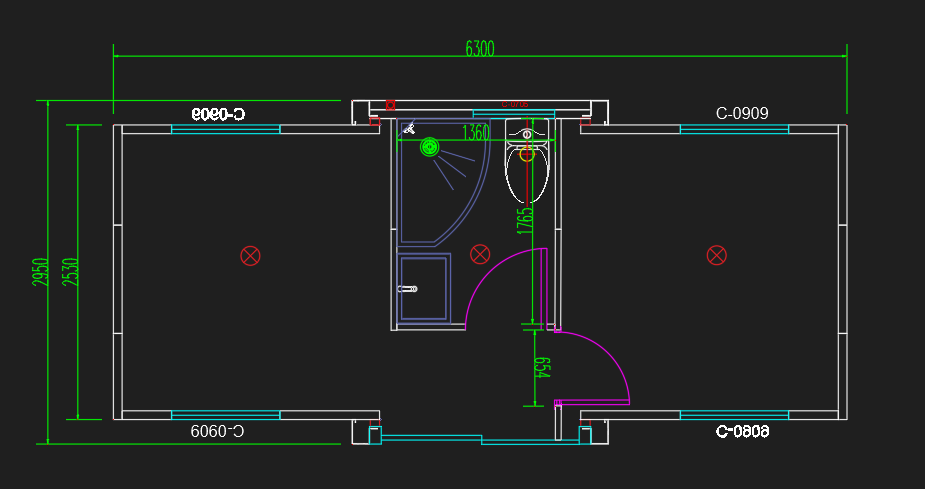

• Expanded Size: 2950mm × 6300mm × 2480mm

• Internal Dimensions: 2510mm × 6140mm × 2240mm

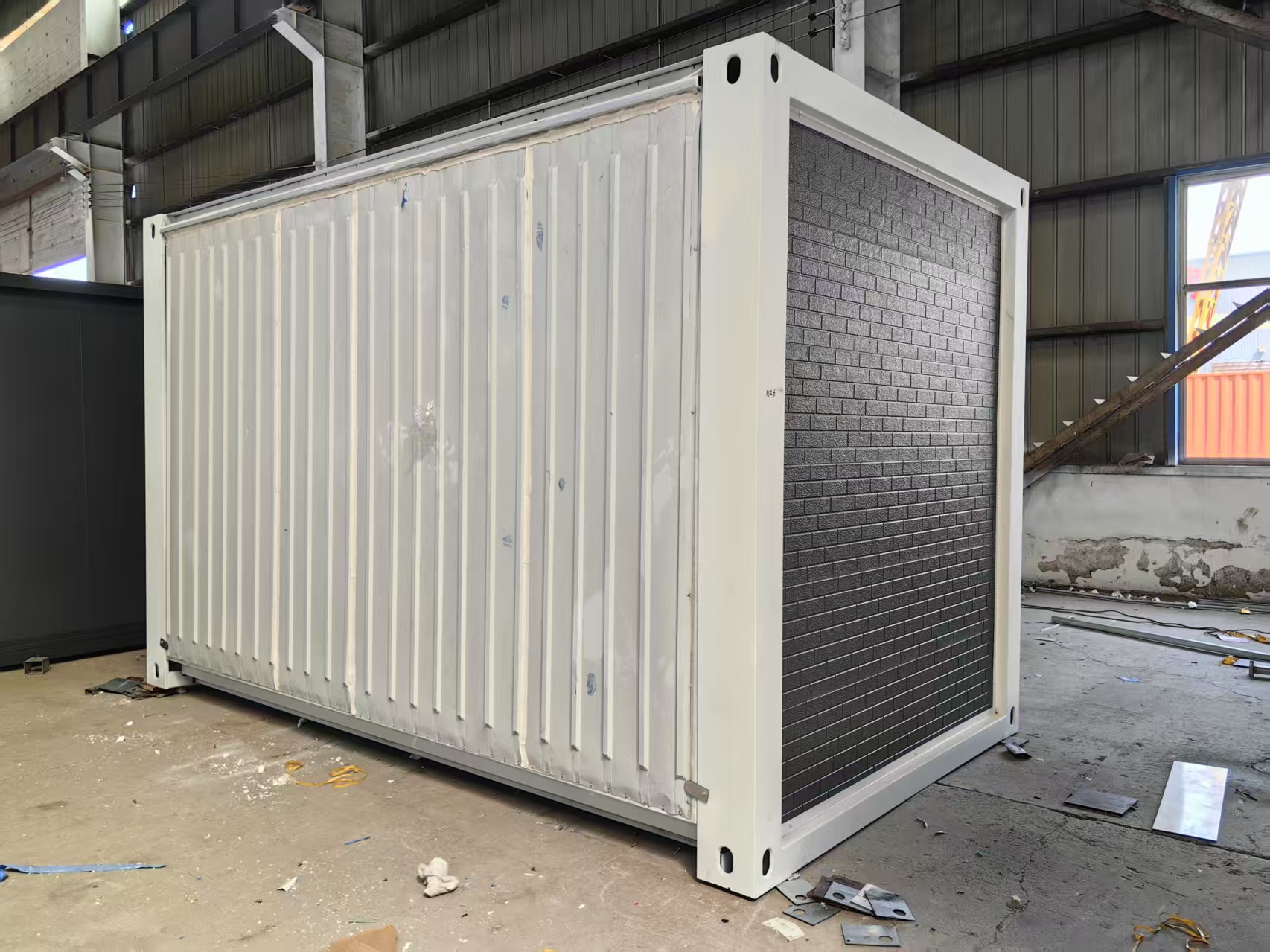

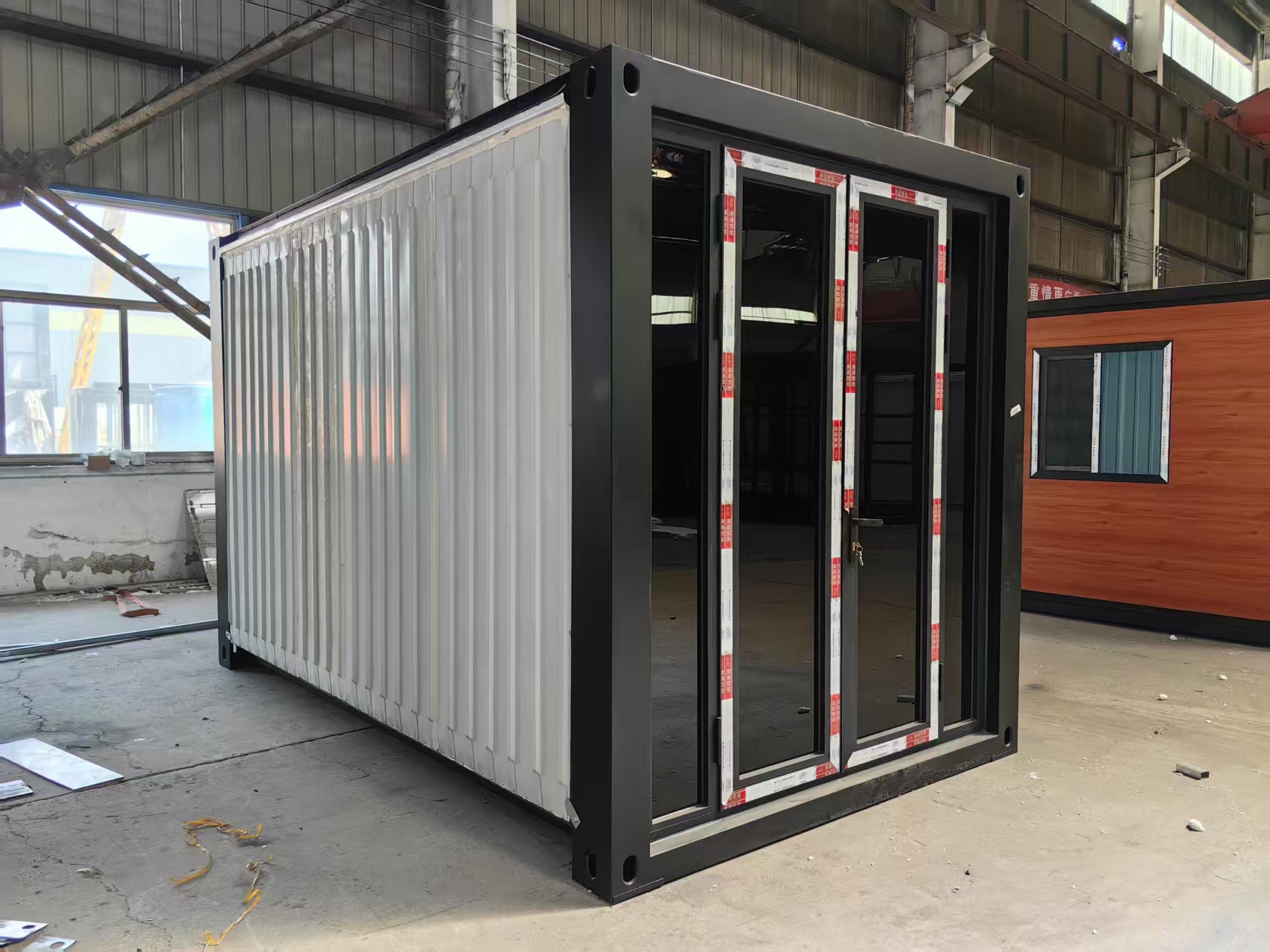

• Folded State: Only 2200mm wide – ideal for transport and storage

• Floor Area: 18.5㎡

• Weight: 1.6 tons

• Capacity: Suitable for 2–4 people

• Power Supply: 12KW (220V, 50Hz standard configuration)

🛠️ Construction & Material Highlights:

• Fully Galvanized Main & Side Frame
  Top and bottom beams: 80×100×2.5mm square tube
  Folding hinge: 130mm galvanized hinge
  Hanging head: 210×150×160mm steel
  All steel components are treated with electrostatic spray coating for long-term corrosion resistance

• Roof & Wall Paneling
  T50mm EPS color steel plate + corrugated veneer (roof)

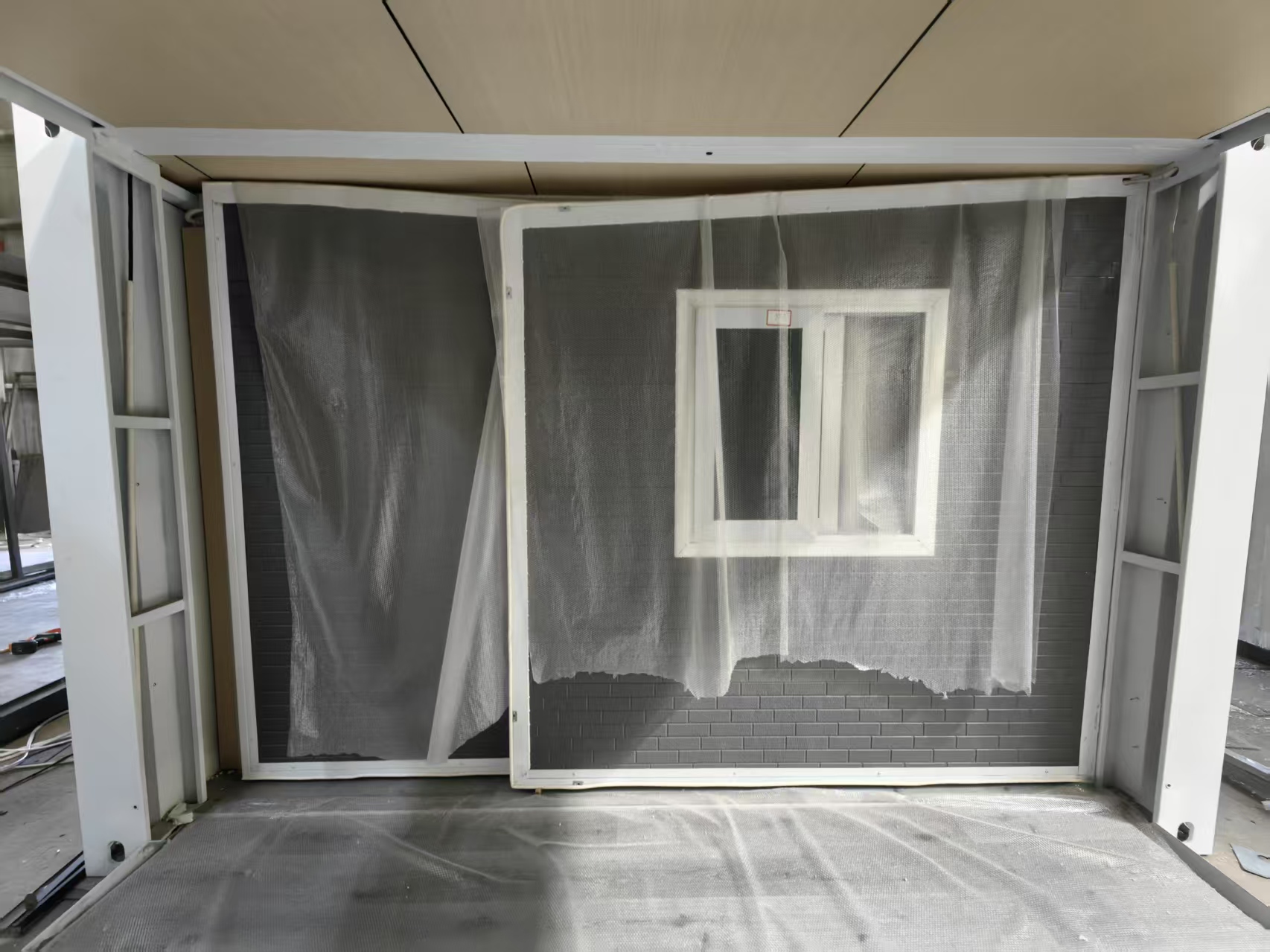

  T65mm EPS color steel wall panels (sides, front, rear)
  Internal ceiling: 200 type ceiling panel
  Inner partition: T50mm EPS

• Flooring System
  Center floor: 18mm thick fireproof cement board
  Side floors: 18mm thick bamboo plywood

• Doors & Windows
  Sliding plastic steel window (920×920mm)
  Single steel door (840×2030mm)

⚡ Electrical System (Customizable):

• 32A leakage protection circuit breaker

• Standard lighting & light switch

• Multiple socket standards (air conditioning, lighting, general use)

• Pre-installed wiring system (customizable by region or certification)

🚛 Container Loading Capacity:

One 40HQ container can hold 4 sets of this 10FT expandable folding container house, ensuring optimal shipping efficiency.

✅ Applications:

This foldable unit is perfect for:

• Temporary offices

• Worker dormitories

• Emergency shelters

• Remote site housing

• Small-scale mobile homes

📈 Why Choose Our Expandable Folding Container House?

• Easy to transport & install

• Durable structure with full galvanization

• Thermal insulation & waterproof protection

• Fully pre-installed electrical & lighting system

• Cost-effective solution for temporary or permanent use
